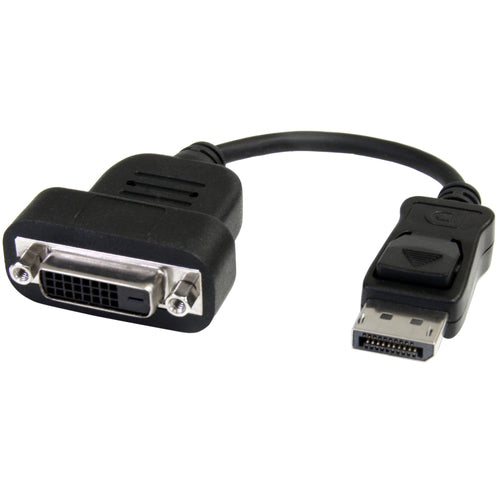

StarTech.com DisplayPort to DVI Adapter - Active DisplayPort to DVI-D Adapter/Video Converter 1080p - DP 1.2 to DVI Monitor Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector

StarTech.com DisplayPort to DVI Adapter - Active DisplayPort to DVI-D Adapter/Video Converter 1080p - DP 1.2 to DVI Monitor Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector (DP2DVIS)

Key Features

• DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 (HBR2) to DVI-D single-link adapter connects a DVI display/projector supporting 1920x1200 & 1080p 60Hz / EDID/DDC pass-through ensures compatibility between source & display / 5.7" (15cm) attached cable
• COMPATIBILITY: Active video converter supports DP or DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations / AMD Eyefinity Certified ideal for use with Radeon Pro Series Workstation Graphics
• CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector or add a second display to your workstation / Compact design /Tested w/ DVI cables up to 25ft / Supports Apple Cinema Display HD

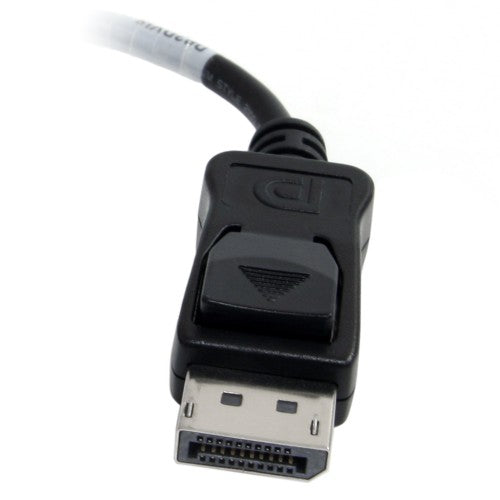

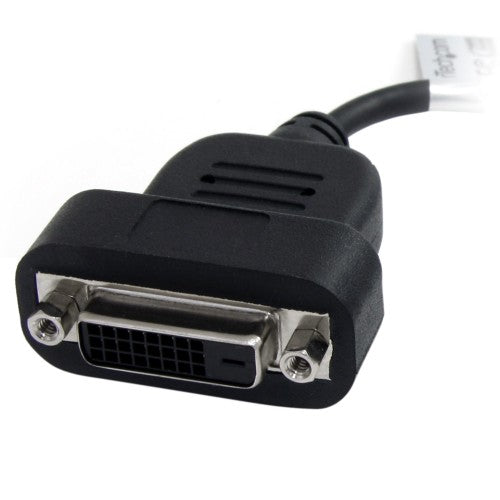

• LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection / Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection
• EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works with any OS including Windows, Ubuntu and macOS; DisplayPort male to DVI female adapter dongle

Description

Connect a DVI monitor to a single-mode DisplayPort output from your computer

The DP2DVIS DisplayPort to DVI Active Single Link adapter lets you connect your DisplayPort video source (desktop PC, laptop, etc.) to a DVI-D monitor, projector or display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort-capable monitor.

Unlike passive adapters, this DP to DVI converter offers an active conversion for use with any DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity). Supporting resolutions up to 1920x1200, this compact device provides a simple solution for converting DisplayPort output for compatibility with existing DVI monitors, televisions or projectors.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Features
Converter type	Active video converter
Chipset	Parade PS 161
DisplayPort version	1.2
Product colour	Black
Cable length	0.2 m
Connector 1	DisplayPort
Connector 2	DVI-D
Connector 1 gender	Male
Connector 2 gender	Female
HDCP	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Dual Link DVI	No
HDCP version	1.3
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	80 - 90%
Storage relative humidity (H-H)	80 - 90%
Other features
Width	44 mm
Height	20 mm
Depth	200 mm
Weight & dimensions
Width	44 mm
Height	20 mm
Depth	200 mm
Weight	48 g
Package width	200 mm
Package depth	220 mm
Package height	20 mm
Package weight	57 g
Packaging data
Package width	200 mm
Package depth	220 mm
Package height	20 mm
Package weight	57 g
Technical details
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case width	337 mm
Master (outer) case length	496 mm
Master (outer) case height	226 mm
Products per master (outer) case	90 pc(s)
Harmonized System (HS) code	84733080
