Description
StarTech.com SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks - SATA to IDE Converter - HDD Docking Station (SAT2IDEADP)
The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).

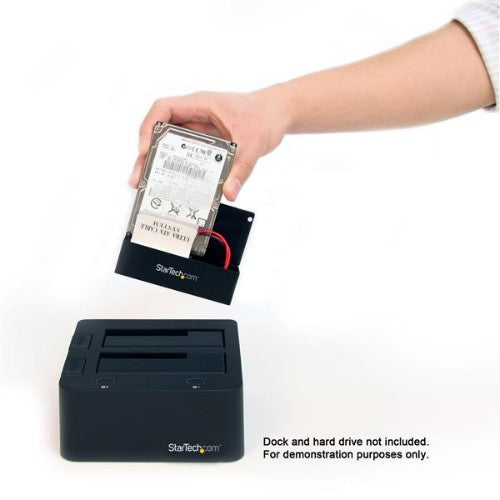

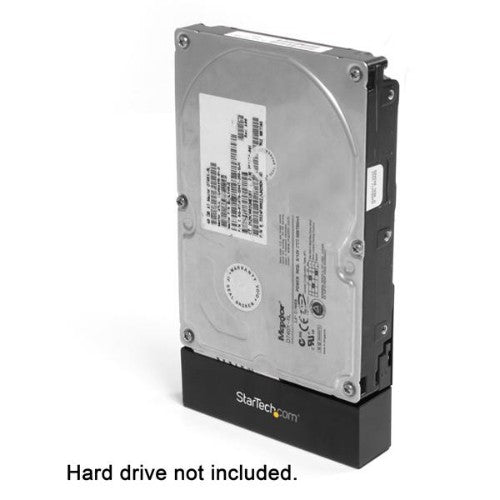

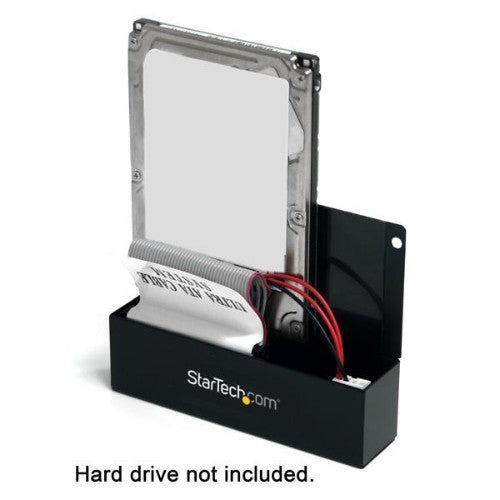

The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.

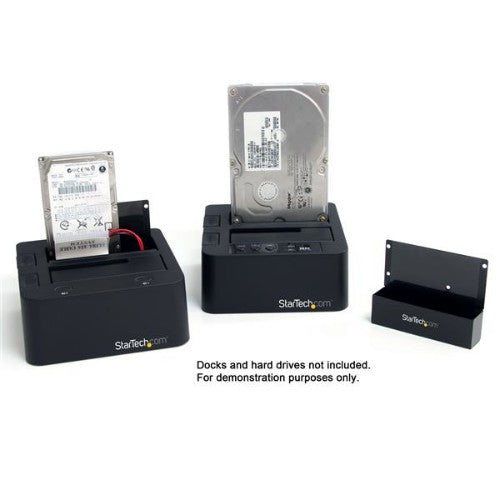

The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking Stations and Duplicators.
Backed by 2-year warranty and free, lifetime technical support.
The StarTech.com Advantage
- Unique design allows any 2.5/3.5in IDE hard drive to be used and inserted (upright) into a SATA HDD docking station or duplicator drive bay
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Key Features

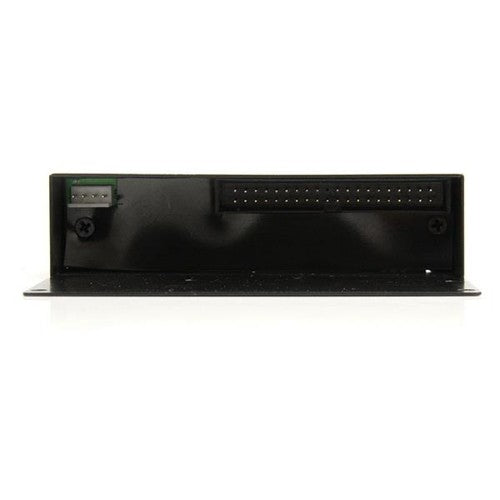

- Supports 40-pin (3.5in) and 44-pin (2.5in) IDE hard drives
- Durable, metal construction
- Compatible with most 3.5in StarTech.com SATA hard drive docking stations and duplicators
- Large capacity hard drive support, with 48-bit LBA
- Compliant with SATA revision 1.0
- Compatible with PATA (IDE) 66/100/133 MBps hard drives
Description
Use your 2.5in or 3.5in IDE hard drives in a SATA HDD Docking StationThe SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).
The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.
The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking Stations and Duplicators.
Backed by 2-year warranty and free, lifetime technical support.
The StarTech.com Advantage
- Unique design allows any 2.5/3.5in IDE hard drive to be used and inserted (upright) into a SATA HDD docking station or duplicator drive bay
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Specifications
| Ports & interfaces | |
|---|---|
| Connector 2 | IDE 40-pin + IDE 44-pin + LP4 |
| Connector 1 | SATA 7-pin + SATA 15-pin |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Technical details | |
| Product colour | Black |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Performance | |
| Chipset | JMicron - JM20330 |
| Storage drive sizes supported | 2.5,3.5" |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Certificates | |
| Certification | CE, FCC, REACH |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Relative humidity | 8 - 90% |
| Operating temperature (T-T) | 5 - 80 °C |
| Weight & dimensions | |
| Width | 78 mm |
| Weight | 104 g |
| Height | 26 mm |
| Depth | 101 mm |
| Packaging data | |
| Package width | 110 mm |
| Package height | 52 mm |
| Package depth | 147 mm |
| Package weight | 200 g |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
