T92E20, PoE, f/ M11, P13 Series & Q1755, White
Key Features
- Arctic Temperature Control; Dual shell; IK10-rated; IP66- and NEMA 4X-rated; One-cable installation
Description

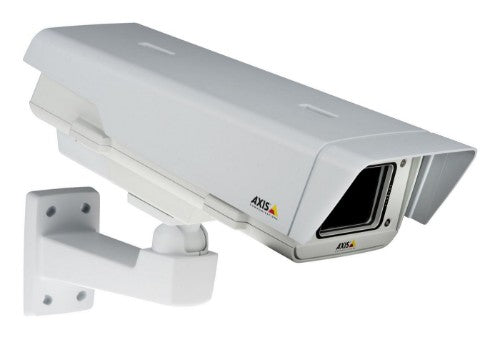

AXIS T92E20 protects Axis fixed network camera in adverse conditions. An internal shell stores heat in cold environments, and fan ventilation transfers excess heat to the outer chassis for efficient cooling in hot environments. Arctic Temperature Control ensures that the camera can start up even at -40 °C (-40 °F) following a power failure. One-cable installation with Power over Ethernet or High Power over Ethernet connection. AXIS T92E20 is IP66- and NEMA 4X-rated against the ingress of dust, rain, high pressure water jets and damage from external ice formation. It is also IK10-rated for protection against impact and vandal acts.
Specifications
| Features |
|---|
| Housing material |
Aluminium |
| Type |
Housing |
| Placement supported |
Indoor |
| Product colour |
White |
| Certification |
IEC 60529 IP66, NEMA 250 Type 4X, IEC 62262 IK10
EN 55022 B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 60950-22, IEC 60068-2-6, IEC 60068-2-27, FCC Part 15 B B, VCCI B ITE, C-tick AS/NZS CISPR 22, ICES-003 B |
| International Protection (IP) code |
IP66 |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Technical details |
|---|
| Type |
Housing |
| Placement supported |
Indoor |
| International Protection (IP) code |
IP66 |
| Harmonized System (HS) code |
85299020 |
| Weight & dimensions |
|---|
| Width |
162 mm |
| Weight |
2.5 kg |
| Height |
142 mm |
| Depth |
405 mm |
| Colour |
|---|
| Product colour |
White |
| Certificates |
|---|
| Certification |
IEC 60529 IP66, NEMA 250 Type 4X, IEC 62262 IK10
EN 55022 B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 60950-22, IEC 60068-2-6, IEC 60068-2-27, FCC Part 15 B B, VCCI B ITE, C-tick AS/NZS CISPR 22, ICES-003 B |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299020 |
