Description

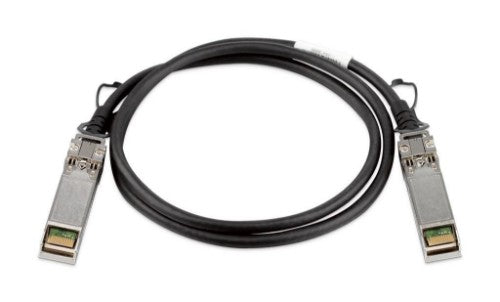

100 cm 10GbE Direct Attach SFP+ Cable DEM-CB100S
Ideal for High-Bandwidth Operations
These D-Link 10G Passive SFP+ Twinaxial Direct Attach Cables support speeds of up to 10 Gbps, while having lower latency and power consumption than other cables types such as 10GBASE-CX4 and CAT6/CAT6A 10GBASE-T. This makes it an optimal solution for handling high bandwidth transmission within short distances such as inside energy-efficient data centres.
Enhanced Small Form-factor Pluggable Format
These D-Link 10G Passive SFP+ Twinaxial Direct Attach Cables use Enhanced Small Form- factor Pluggable format (SFP+) connectors. The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, resulting in lower costs, lower power disruption, and higher port density. Meanwhile SFP+ connectors use the same space-per-port as standard SFP connectors but support higher data transmission speeds.
Save on Costs
These D-Link 10G Passive SFP+ Twinaxial Direct Attach Cables feature SFP+ connectors on
both ends, thus eliminating the need for expensive SFP+ transceivers. This makes it more
cost-effective than fibre cables which must use SFP+ transceivers.
Description
These 10G Passive SFP+ Twinaxial Direct Attach Cables are designed to support connections for 10 Gbps Gigabit Ethernet or Gigabit Ethernet switches with 10 Gbps Gigabit Ethernet uplink, much more faster than SFP which only supports 2.5 Gbps Gigabit Ethernet. With two cable models including the DEM-CB100S and DEM-CB300S, these cables are suitable for short distances up to 3 metres, and is ideal for highly cost-effective networking connectivity between switches and servers within a rack or in adjacent racks. These 10G Passive SFP+ Twinaxial Direct Attach Cables are certified to be compatible with D-Link products to provide you best performance and reliability.Ideal for High-Bandwidth Operations
These D-Link 10G Passive SFP+ Twinaxial Direct Attach Cables support speeds of up to 10 Gbps, while having lower latency and power consumption than other cables types such as 10GBASE-CX4 and CAT6/CAT6A 10GBASE-T. This makes it an optimal solution for handling high bandwidth transmission within short distances such as inside energy-efficient data centres.
Enhanced Small Form-factor Pluggable Format
These D-Link 10G Passive SFP+ Twinaxial Direct Attach Cables use Enhanced Small Form- factor Pluggable format (SFP+) connectors. The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, resulting in lower costs, lower power disruption, and higher port density. Meanwhile SFP+ connectors use the same space-per-port as standard SFP connectors but support higher data transmission speeds.
Save on Costs
These D-Link 10G Passive SFP+ Twinaxial Direct Attach Cables feature SFP+ connectors on
both ends, thus eliminating the need for expensive SFP+ transceivers. This makes it more
cost-effective than fibre cables which must use SFP+ transceivers.
Specifications
| Features | |
|---|---|
| Connector 1 | SFP+ |
| Connector 2 | SFP+ |
| Cable length | 1 m |
| Data transfer rate | 10 Gbit/s |
| Product colour | Black |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| AWG wire size | 30 |
| Bending radius | 2.35 cm |
| Operating temperature (T-T) | -40 - 85 °C |
| Certification | SFP MSA (Multi-Source Agreement) SFF-8431 EIA 364 UL 94 |
| Certificates | |
| Certification | SFP MSA (Multi-Source Agreement) SFF-8431 EIA 364 UL 94 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Bending radius | 2.35 cm |
| Cable length | 1 m |
| Package width | 267 mm |
| Package depth | 317 mm |
| Package height | 46 mm |
| Package weight | 250 g |
| Packaging data | |
| Package width | 267 mm |
| Package depth | 317 mm |
| Package height | 46 mm |
| Package weight | 250 g |
| Technical details | |
| Connector 1 | SFP+ |
| Connector 2 | SFP+ |
| Cable length | 1 m |
| Data transmission | |
| Data transfer rate | 10 Gbit/s |
| Logistics data | |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
| Shipping (inner) case width | 33.6 cm |
| Shipping (inner) case length | 56.2 cm |
| Shipping (inner) case height | 26.5 cm |
| Shipping (inner) case gross weight | 3.8 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Shipping (inner) case net weight | 2.8 kg |
| Products per pallet (sea) | 420 pc(s) |
| Products per pallet (air) | 300 pc(s) |
| Pallet height (sea) | 199 cm |
| Pallet height (air) | 146 cm |
| Pallet gross weight (sea) | 172.6 kg |
| Pallet gross weight (air) | 127 kg |
| Master (outer) cases per pallet (sea) | 42 pc(s) |
| Master (outer) cases per pallet (air) | 30 pc(s) |
