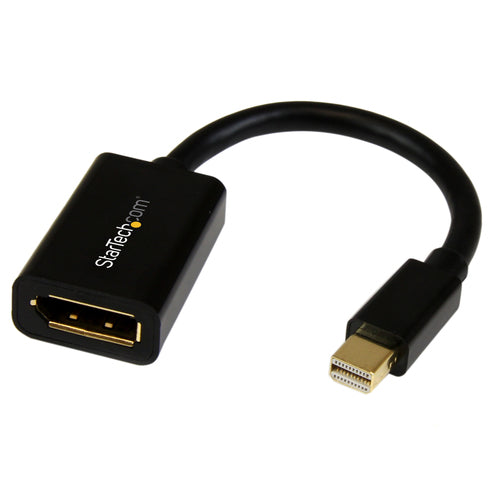

StarTech.com Mini DisplayPort to DisplayPort Adapter - 4K x 2K UHD Video - Mini DP to DP Converter - Mini DisplayPort to DisplayPort 1.2 Adapter - mDP PC/Computer to DP Monitor/Display

StarTech.com Mini DisplayPort to DisplayPort Adapter - 4K x 2K UHD Video - Mini DP to DP Converter - Mini DisplayPort to DisplayPort 1.2 Adapter - mDP PC/Computer to DP Monitor/Display (MDP2DPMF6IN)

Key Features

• MINI DISPLAYPORT to DISPLAYPORT 1.2 ADAPTER: mDP to DP adapter supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz); 6" (15 cm) attached cable
• RELIABLE DESIGN: Mini DisplayPort to DisplayPort adapter has durable ABS connectors w/ flexible PVC strain relief & jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides added EMI shielding & noise imunity
• QUALITY CONSTRUCTION: 32AWG wire w/ gold-plated connectors for improved signal integrity/reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video/audio; Mini DP to DP converter backwards compatible w/DP1.1
• APPLICATIONS: Video adapter is ideal for home/office/boardroom/classroom works w/laptop (with Mini-DP port)/professional workstations w/ AMD FirePro™ W9100/8100, NVIDIA NVS 810/510 graphic card; UHD/4K monitor/projector/display; Microsoft Surface Pro 1-6
• SPECS: 6 inch (15 cm) / Black / DisplayPort v1.2 / Mini-DP Male to Standard DP Female adapter / 32 AWG / PVC cable jacket, ABS connector shell / Shield: Al-Mylar foil with Braid / Protocols: HBR 2, MST, GTC / Lifetime Warranty

Description

Connect your DisplayPort® monitor to a standard Mini DisplayPort source

The MDP2DPMF6IN Mini DisplayPort to DisplayPort video cable adapter allows you to add a standard DisplayPort connection port to your existing mini Displayport equipped laptop. Easy to use and install, this cost-effective solution makes it easy for you to go from Mini DP to DP, in order to get the most from your Mini DisplayPort device.

Please Note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.

The StarTech.com Advantage

Specifications

Features
Cable shielding	Aluminum mylar foil
Cable rating	CMG (CM)
Number of conductors	20
Product colour	Black
Cable length	0.1524 m

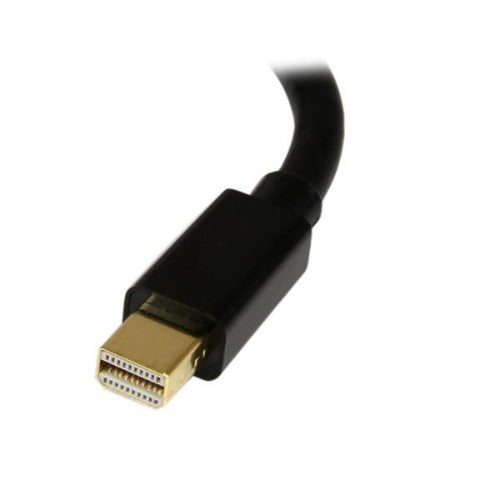

Connector 1	Mini DisplayPort

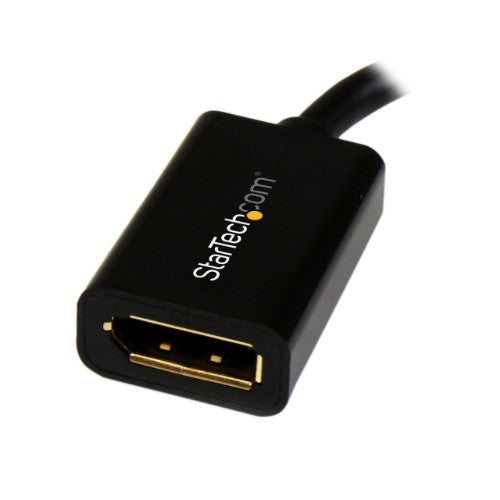

Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Female
Connector contacts plating	Nickel
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	32
DisplayPort version	1.2
Bandwidth	21600 MB/s
Maximum resolution	3840 x 2400 pixels
Supported graphics resolutions	2560 x 1600 (WQXGA), 3840 x 2400
Plug and Play	Yes
Maximum refresh rate	120 Hz
Multi-Stream Transport (MST)	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Certificates
Compliance certificates	CE, RoHS
Weight & dimensions
Cable diameter	5 mm
Weight	19 g
Package weight	24 g
Package width	126 mm
Package depth	227 mm
Package height	15 mm
Packaging data
Cable diameter	5 mm
Package weight	24 g
Weight	19 g
Package width	126 mm
Package depth	227 mm
Package height	15 mm
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	CE, RoHS
Logistics data
Products per master (outer) case	300 pc(s)
Master (outer) case width	375 mm
Master (outer) case length	414 mm
Master (outer) case height	270 mm
Harmonized System (HS) code	84733080
