Description

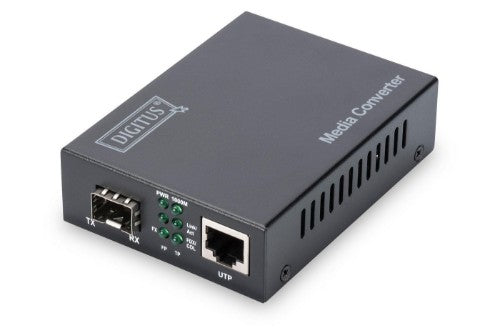

Gigabit Ethernet Media Converter, SFP SFP Open Slot, without SFP Module
- Exclusive SFP module with a range up to 80 km
- Sends data in high quality and additionally provides excellent reliability
- A quick delivery is guaranteed in the gigabit range
The media converters from DIGITUS® are the ideal solution for the migration of copper and fiber network signals. From now on, you are able to access the fiber technology and transfer network signals over several kilometers without renewing your whole network infrastructure. The huge variety of products fulfil your individual needs. The intiutive operation guarantees a quick and easy installation. Years of experience and a wide range of products lets DIGITUS® become a reliable partner for your network.
Key Features
- Transforms wire based network media to fiber optic
- High quality and excellent reliability
- Connectors: 1x RJ45, 1x SFP
- Distance up to 80km
- Automatic cable detection - auto MDI / MDI-X function
- Auto-negotiation of full- and half-duplex

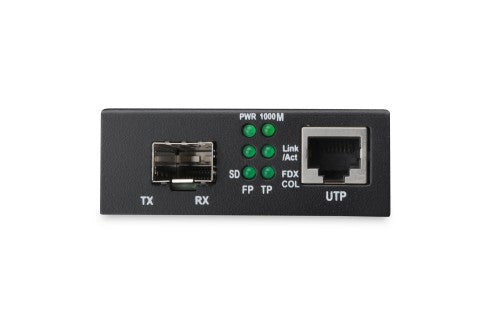

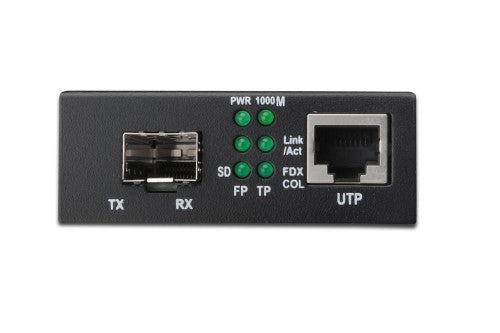

- Diagnostic and monitoring LEDs for the status of power, link and act of the ports
- Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3z Gigabit Ethernet
- 2MB Data Buffer
- Operating Temperature: 0 to 60°C
- Dimensions (L x W x H): 95mm x 70mm x 26mm
- Weight: 200g

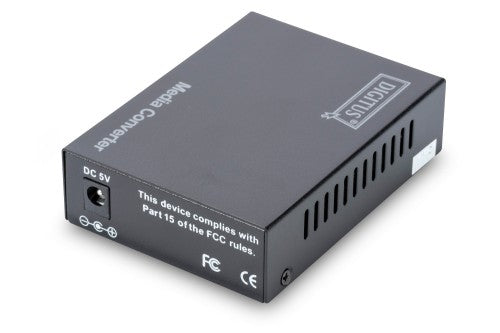

- Standalone Converter with external power supply

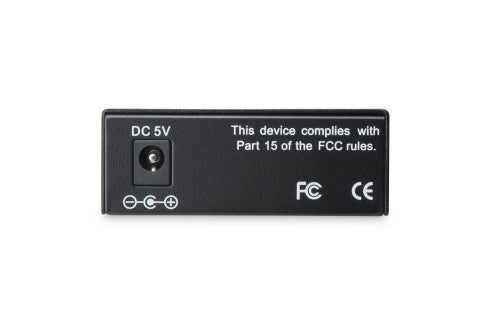

- Input Supply Voltage: 5V DC

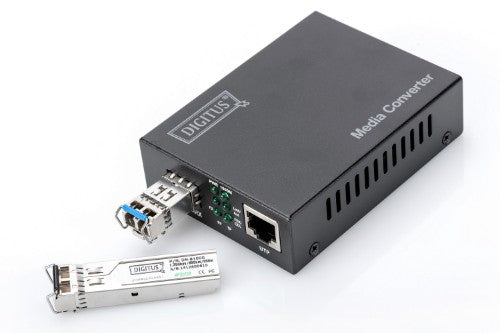

- Exclusive SFP Module
- Supports both 155M SFP and 1G SFP
Description
The perfect converter solution for various fiber media- Exclusive SFP module with a range up to 80 km
- Sends data in high quality and additionally provides excellent reliability
- A quick delivery is guaranteed in the gigabit range
The media converters from DIGITUS® are the ideal solution for the migration of copper and fiber network signals. From now on, you are able to access the fiber technology and transfer network signals over several kilometers without renewing your whole network infrastructure. The huge variety of products fulfil your individual needs. The intiutive operation guarantees a quick and easy installation. Years of experience and a wide range of products lets DIGITUS® become a reliable partner for your network.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Duplex system | Full, Half |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SFP |
| Performance | |
| Maximum transfer distance | 80000 m |
| Buffer size | 2048 KB |
| Features | |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| DC-in jack | Yes |
| Power | |
| Power over Ethernet (PoE) | No |
| Input voltage | 5 V |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 95 mm |
| Weight | 200 g |
| Height | 26 mm |
| Package volume | 1716 cm³ |
| Package depth | 55 mm |
| Package width | 130 mm |
| Package weight | 450 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Packaging data | |
| Package volume | 1716 cm³ |
| Package depth | 55 mm |
| Package width | 130 mm |
| Package weight | 450 g |
| Technical details | |
| Maximum transfer distance | 80000 m |
| Buffer size | 2048 KB |
| Transmission distance (max) | 80 km |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Design | |
| Country of origin | China |
| Product colour | Black |
| Certification | FCC, CE. |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | FCC, CE. |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| UK Trade Tariff code | 85176200 |
| Other features | |
| Transmission distance (max) | 80 km |
