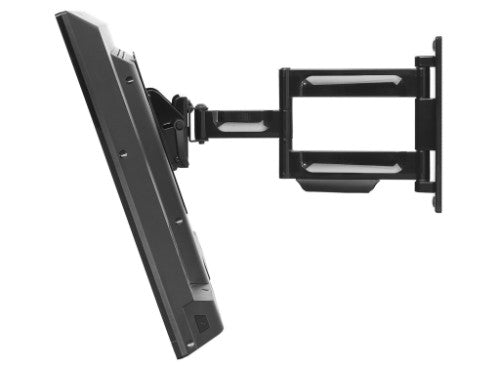

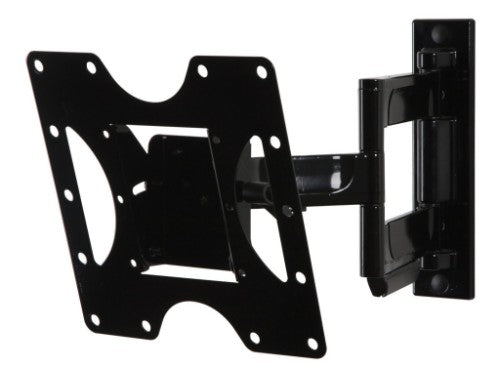

Paramount Articulating Wall Mount For 22"-43" Displays
Key Features
- Accommodates 100 x 100, 200 x 100, or 200 x 200mm VESA® mounting patterns
- Extends 14.91" (379mm) from the wall
- Retracts 2.80" (71mm) to save space
- +15/-5° of tilt for optimal viewing angles
- ±5° of roll for post installation display leveling
- Up to ±90° of pivot
- Design is UL listed and tested to four times stated load capacity
- Hook-and-Hang™, one-person display installation
- Lock the display at any angle with the ratcheting handle

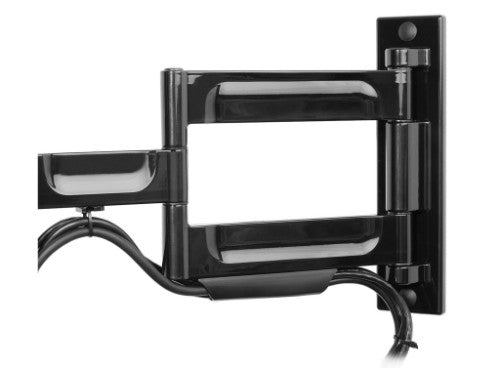

- Integrated cable management protects, contains and conceals cables for a clean, professional installation
- Mounts to wood stud, concrete, cinder or breeze block
Description
The Paramount™ series wall mounts provide versatile and multi-functional features. With PA74, extend the display up to 14.91" (379mm) or fully-retract it to just 2.8" (71mm) from the wall for the perfect viewing angle. The Hook-and-Hang™ system offers easy, one-person installation of the display. A ratcheting handle provides locking tilt capability for quick adjustments to the amount of tilt, reducing glare and optimizing the viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
55.9 cm (22") |
| Panel mounting interface |
100 x 100,100 x 200,200 x 100,200 x 200 |
| Number of displays supported |
1 |
| Minimum VESA mount |
100 x 100 mm |
| Maximum VESA mount |
200 x 200 mm |
| Maximum screen size |
109.2 cm (43") |
| Maximum weight capacity |
36 kg |
| Ergonomics |
|---|
| Cable management |
Yes |
| Tilt angle range |
-5 - 15° |
| Pivot angle |
-90 - 90° |
| Tilt adjustment |
Yes |
| Technical details |
|---|
| Cable management |
Yes |
| Pivot angle |
-90 - 90° |
| Number of displays supported |
1 |
| Product colour |
Black |
| Mounting type |
Wall |
| Quantity per pack |
1 pc(s) |
| Compliance certificates |
RoHS |
| Design |
|---|
| Cable management |
Yes |
| Certification |
UL |
| Product colour |
Black |
| Certificates |
|---|
| Certification |
UL |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Manual |
Yes |
| Weight & dimensions |
|---|
| Width |
239 mm |
| Height |
222 mm |
| Weight |
2.04 kg |
| Depth (min) |
7.1 cm |
| Depth (max) |
37.9 cm |
| Packaging data |
|---|
| Package width |
270 mm |
| Package depth |
299 mm |
| Package height |
82 mm |
| Package type |
Box |
| Package weight |
2.74 kg |
| Mounting kit |
Yes |
| Manual |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
| Other features |
|---|
| Mounting type |
Wall |
