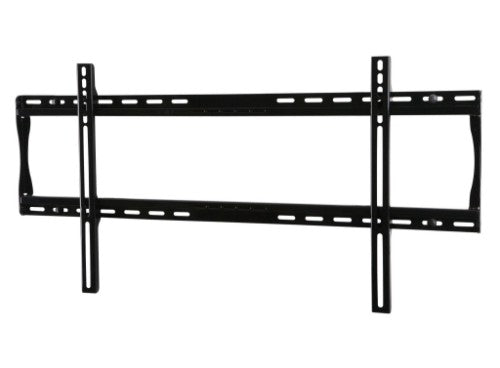

Universal Flat Wall Mount for 39" to 90" Displays
Key Features
- Universal mount fits displays with mounting patterns up to 825 x405mm (32.48" W x 15.95" H) and accommodates up to 800 x 400mmVESA patterns)

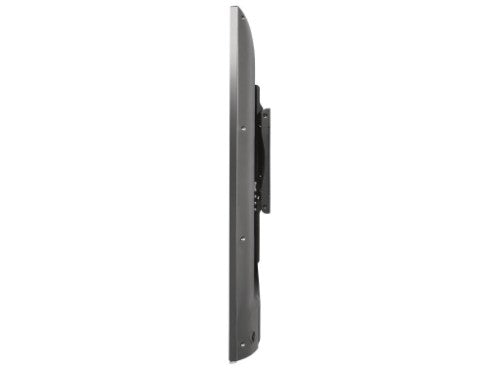

- Low-profile design holds display only 1.26" (32mm)
- Horizontal display adjustment up to 8.00" (203mm) for centering display on wall
- Design is UL listed and tested to four times stated load capacity
- Includes all necessary wall and display attachment hardware
Description
The Paramount™ series wall mounts provide versatile and multi-functional features. With PF66, a low-profile design positions the display just 1.26" (32mm) from the wall. The Hook-and-Hang™ system offers easy, one-person installation of the display. The Easy-Glide™ adaptors hook onto the wall plate for a quick, simple, and secure installation. Achieve perfect positioning of the display with the side-to-side adjustment after installation.
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
99.1 cm (39") |
| Number of displays supported |
1 |
| Maximum VESA mount |
800 x 400 mm |
| Maximum screen size |
2.29 m (90") |
| Maximum weight capacity |
91 kg |
| Technical details |
|---|
| Number of displays supported |
1 |
| Product colour |
Black |
| Mounting type |
Wall |
| Quantity per pack |
1 pc(s) |
| Compliance certificates |
RoHS |
| Design |
|---|
| Certification |
UL |
| Product colour |
Black |
| Certificates |
|---|
| Certification |
UL |
| Weight & dimensions |
|---|
| Width |
867 mm |
| Height |
429 mm |
| Weight |
2.54 kg |
| Depth (max) |
3.2 cm |
| Packaging data |
|---|
| Package width |
925 mm |
| Package depth |
272 mm |
| Package height |
40 mm |
| Package weight |
3.45 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
| Other features |
|---|
| Mounting type |
Wall |
