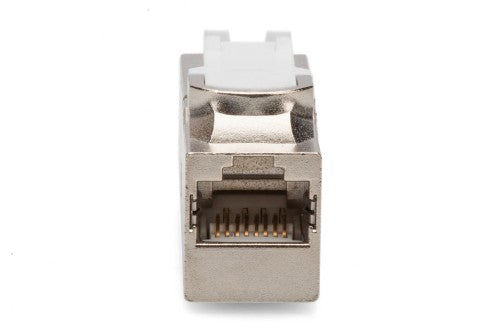

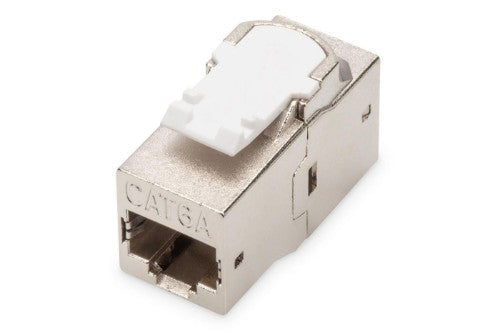

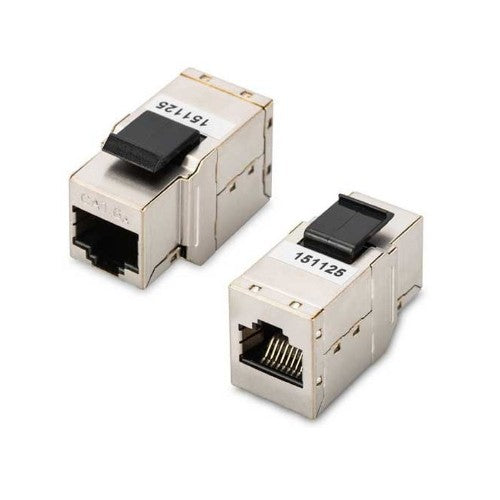

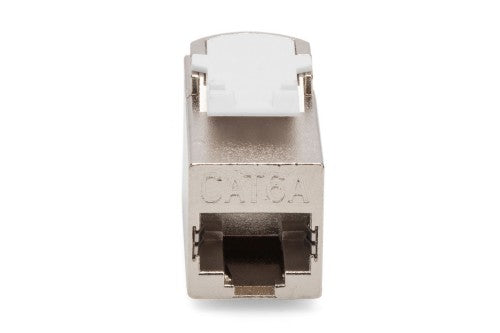

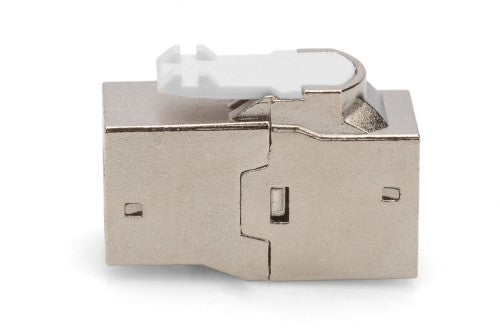

CAT 6A modular coupler, shielded RJ45 to RJ45, snap-in panel mount
Key Features
- Transmission properties: Category 6A, Class EA
- Area of application: Up to 500 MHz, 10GBase-T
- Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
- General properties:
- Suitable for 483 mm (19") cabinet mounting
- 2x RJ45 Female, 8P8C
- 360° shield coverage
- Connection 1:1
- Technical properties:
- Housing material: Zinc die-cast, nickel-plated
- RJ45 female material: ABS UL 94V-0
- RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
- RJ45 shielding: Tinned bronze
- Conductor plate: FR4, UL 94V-0
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Retention strength: 7.7 kg between jack and plug
- Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
- IDC wire size: 22 – 26 AWG solid and stranded conductor
- Insulation resistance: > 500 MOhm
- Contact resistance: < 20 MilliOhm
- Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Description
The modular couplers from DIGITUS® are shielded and provide best performance and link quality for your network. They are equipped with 2 RJ45 sockets with the assignment 1:1 and are therefore suitable for mounting in Patch Panels.
Specifications
| Ports & interfaces |
|---|
| Connector 2 |
RJ-45 |
| Connector 1 |
RJ-45 |
| Connector 2 gender |
Female |
| Connector 1 gender |
Female |
| Performance |
|---|
| Housing material |
Nickel |
| Product colour |
Nickel |
| Country of origin |
China |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 50 °C |
| Weight & dimensions |
|---|
| Width |
20 mm |
| Height |
20 mm |
| Depth |
35 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
75 mm |
| Package type |
Polybag |
| Package height |
110 mm |
| Package depth |
20 mm |
| Package weight |
20 g |
| Technical details |
|---|
| Package type |
Polybag |
| Product colour |
Nickel |
| Country of origin |
China |
| Housing material |
Nickel |
| Design |
|---|
| Housing material |
Nickel |
| Product colour |
Nickel |
| Other features |
|---|
| Country of origin |
China |
| Logistics data |
|---|
| Country of origin |
China |
