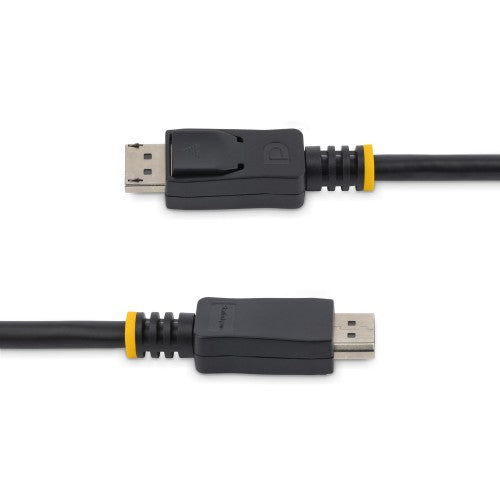

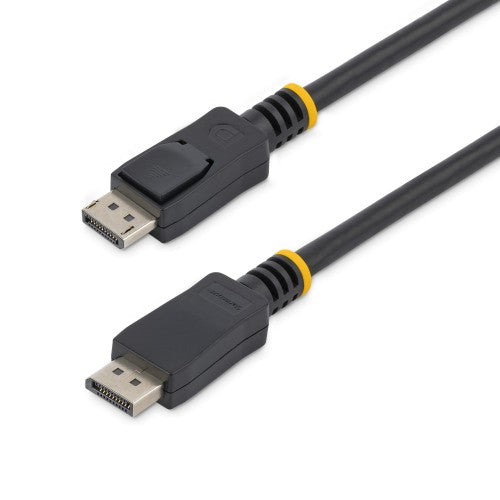

StarTech.com 2m (6ft) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors

StarTech.com 2m (6ft) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors (DISPL2M)

Key Features

• HIGH PERFORMANCE CABLE: This 2m (6ft) VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)

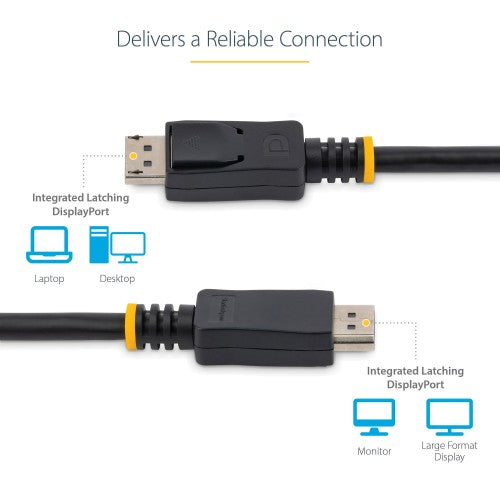

• RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
• QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
• APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
• SPECS: 2 m (6 ft) / Black / DisplayPort v1.2 / DP Latching Male to Male / 28 AWG / PVC cable jacket, ABS connector shell / Shield: Al-Mylar foil with Braid / Protocols: HBR 2, MST, GTC / Lifetime Warranty

Description

Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort™-equipped devices

The DISPL2M 2m DisplayPort™ 1.2 Cable with latches provides a secure, connection between your DisplayPort-equipped devices and is capable of providing higher performance than either HDMI® or dual link DVI.

The DP cable supports high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.

The DISPL2M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

The StarTech.com Advantage

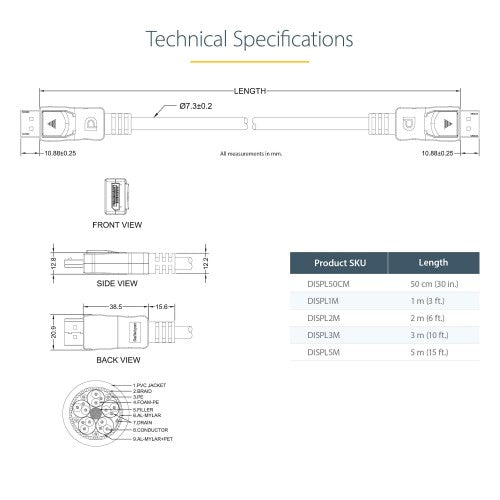

Specifications

Features
Cable shielding	Aluminum mylar foil
Latching connectors	Yes
Cable rating	CMG (CM)
Number of conductors	19
DisplayPort Content Protection (DPCP)	Yes
Product colour	Black
Cable length	2 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Nickel
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	28
DisplayPort version	1.2
Bandwidth	21600 MB/s
Maximum resolution	3840 x 2400 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA)
HDCP	Yes
Plug and Play	Yes
Maximum refresh rate	60 Hz
Multi-Stream Transport (MST)	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Certificates
Compliance certificates	RoHS, CE
Weight & dimensions
Cable diameter	7.3 mm
Weight	153.6 g
Package weight	151 g
Package width	200 mm
Package depth	220 mm
Package height	32 mm
Packaging data
Cable diameter	7.3 mm
Package weight	151 g
Weight	153.6 g
Package width	200 mm
Package depth	220 mm
Package height	32 mm
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	RoHS, CE
Logistics data
Products per master (outer) case	70 pc(s)
Master (outer) case width	330 mm
Master (outer) case length	500 mm
Master (outer) case height	280 mm
Harmonized System (HS) code	84733080
