Description

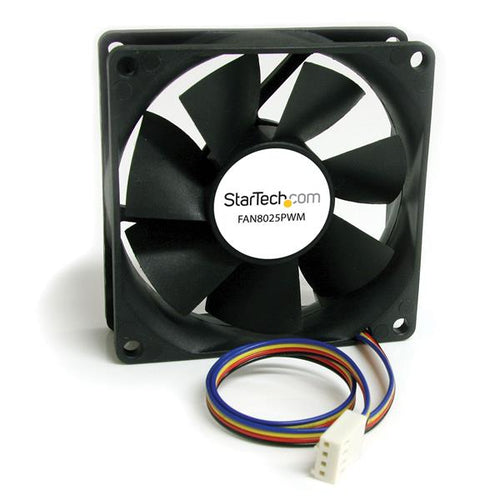

StarTech.com 80x25mm Computer Case Fan with PWM - Pulse Width Modulation Connector - computer cooling Fan - 80mm Fan - pwm Fan
The FAN8025PWM 80mm PWM Case Fan adds an efficient air cooling solution to computer cases or other enclosures, to keep components running optimally.
With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- PWM control enables the fan to be controlled by the motherboard according to current system requirements, ensuring optimal system performance
- Ever Lubricate bearing design increases reliability and lifespan over fans with a traditional sleeve bearing design
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Description
Add a Variable Speed, PWM-Controlled Cooling Fan to a Computer CaseThe FAN8025PWM 80mm PWM Case Fan adds an efficient air cooling solution to computer cases or other enclosures, to keep components running optimally.
With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- PWM control enables the fan to be controlled by the motherboard according to current system requirements, ensuring optimal system performance
- Ever Lubricate bearing design increases reliability and lifespan over fans with a traditional sleeve bearing design
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Noise level (high speed) | 28 dB |
| Type | Fan |
| Operating temperature (T-T) | -10 - 70 °C |
| Fan diameter | 8 cm |
| Mean time between failures (MTBF) | 40000 h |
| Design | |
| Material | Plastic |
| Product colour | Black |
| Technical details | |
| Noise level (high speed) | 28 dB |
| Type | Fan |
| Fan diameter | 8 cm |
| Material | Plastic |
| Connector(s) | 1 - Molex Fan (4 pin; PWM) |
| Power | |
| Voltage | 12 V |
| Rated current | 0.16 A |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 65% |
| Storage relative humidity (H-H) | -20 - 70% |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 143 mm |
| Package width | 96 mm |
| Package height | 32 mm |
| Package weight | 111 g |
| Weight | 86 g |
| Endurance | |
| Mean time between failures (MTBF) | 40000 h |
| Packaging data | |
| Package depth | 143 mm |
| Package width | 96 mm |
| Package height | 32 mm |
| Package weight | 111 g |
| Other features | |
| Operating relative humidity (H-H) | 0 - 65% |
| Storage relative humidity (H-H) | -20 - 70% |
| Fan performance | 25.02 cfm |
| Rotational speed | 2500 RPM |
| Dimensions (WxDxH) | 80 x 80 x 25 mm |
| Connector(s) | 1 - Molex Fan (4 pin; PWM) |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
