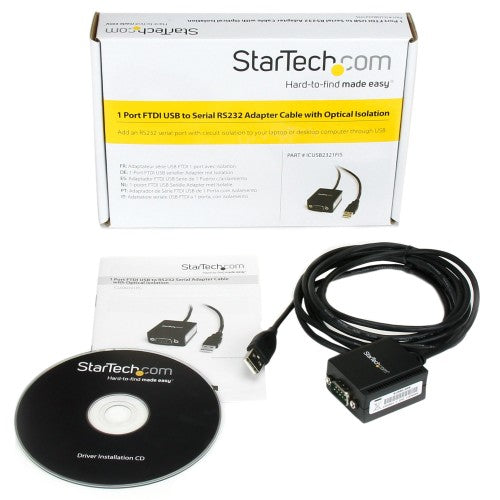

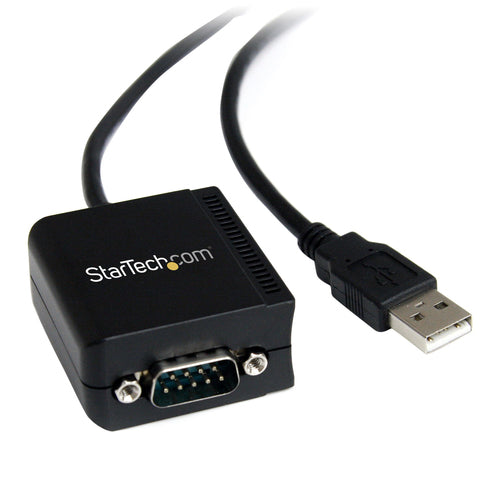

StarTech.com 8.3ft (2.5m) 1-Port FTDI USB to Serial RS232 Adapter Cable with Optical Isolation, USB to RS232 Adapter - TAA

StarTech.com 8.3ft (2.5m) 1-Port FTDI USB to Serial RS232 Adapter Cable with Optical Isolation, USB to RS232 Adapter - TAA

Key Features

• MULTI-USE FUNCTIONALITY: This versatile USB to serial RS232 adapter is perfect for a range of applications, from digital signage to connecting point-of-sale systems and barcode scanners
• CUSTOMIZABLE SOLUTION: This USB serial hub features an FTDI chipset, making it highly customizable and compatible, and the ideal solution for any setup; Integrated 2500Vrms Optical Isolation Circuits
• COMPACT DESIGN: Designed with a small form factor, this serial RS232 converter is USB powered and requires no bulky power adapters or an outlet
• EASY INSTALLATION: This serial adapter ensures easy installation and operation with COM port retention that provides robust serial connectivity for legacy devices
• TECH SPECS: 8.3 feet (2.4 meters); FTDI FT232RL Chipset; Max Baud Rate: 921.6 Kbps; 256 Bytes FIFO; None/Odd/Even/Mark/Space Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits; 500W Bi-directional circuits Surge Protection; TAA Compliant

Description

Add an RS232 serial port with circuit isolation to your laptop or desktop computer, through USB

The ICUSB2321FIS 1-Port FTDI USB to Serial RS232 Adapter Cable with Optical Isolation converts an available USB 1.1 or 2.0 port into an RS232 DB9 port that can be used to connect, monitor and control your serial devices.
The USB to serial adapter features integrated optical isolation circuits and surge protection to protect your critical, sensitive control equipment against electrical damage, making it a viable solution for costly industrial serial devices.
The versatile FTDI chipset also supports COM retention, additional customization/features, and compatibility not offered by most other solutions. Broad operating system compatibility including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
Connector 2	USB A
Connector 1	DB-9
Cable length	2.5 m
Connector 2 gender	Male
Connector 1 gender	Male
Performance
Housing material	Plastic
Chipset	FTDI - FT232RL
Stop bits	1, 2
Data bits	7, 8
Baud rate	921.6 Kbit/s
Isolation	2500 kV
FIFO (First In, First Out)	256 B
USB required	Yes
Compatible operating systems	Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x+
Product colour	Black
Parity bit	Even, Mark, No, Odd, Space
Certification	CE, FCC, Microsoft WHQL
Operational conditions
Storage temperature (T-T)	-20 - 85 °C
Relative humidity	5 - 95%
Operating temperature (T-T)	0 - 55 °C
Certificates
Certification	CE, FCC, Microsoft WHQL
Compliance certificates	CE, RoHS
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	40 mm
Weight	86 g
Height	20 mm
Depth	2400 mm
Packaging content
Manual	Yes
Drivers included	Yes
Packaging data
Package width	105 mm
Package height	20 mm
Package depth	72 mm
Package weight	222 g
Technical details
USB required	Yes
Product colour	Black
Cable length	2.5 m
Gross weight (imperial)	0.2 kg (0.44 lbs)
Housing material	Plastic
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Design
Housing material	Plastic
Product colour	Black
Certification	CE, FCC, Microsoft WHQL
Cable length	2.5 m
System requirements
Compatible operating systems	Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x+
Other features
Gross weight (imperial)	0.2 kg (0.44 lbs)
Logistics data
Products per master (outer) case	50 pc(s)
Master (outer) case width	450 mm
Master (outer) case length	525 mm
Master (outer) case height	336 mm
