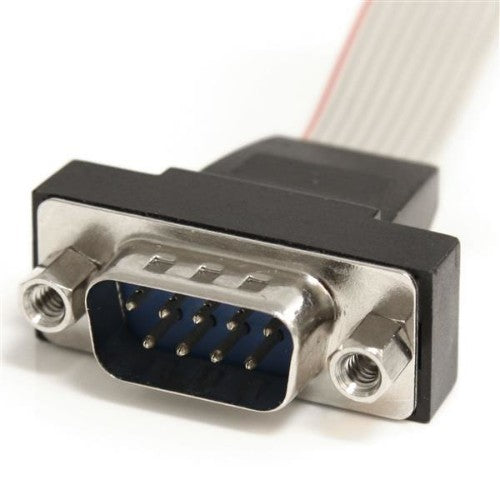

StarTech.com 16in 9 Pin Serial Male to 10 Pin Motherboard Header Panel Mount Cable

StarTech.com 16in 9 Pin Serial Male to 10 Pin Motherboard Header Panel Mount Cable - motherboard to RS232

Description

Turn a Motherboard IDC Serial Header into a Panel-Mountable 9-Pin RS232 Serial Connector

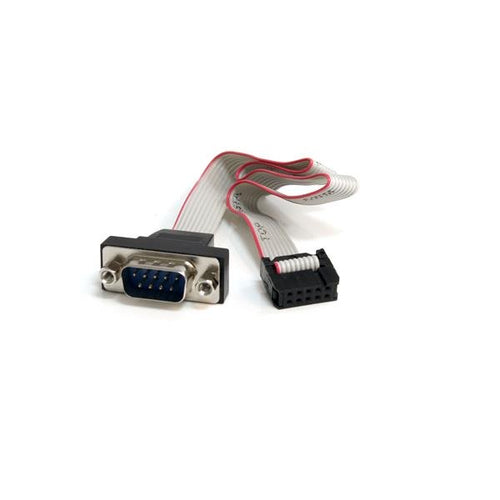

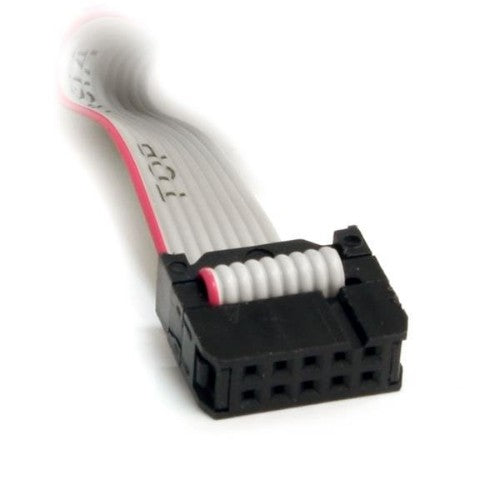

The PNL9M16 16-inch IDC Serial to Panel Mount Serial Cable, features a 10-pin (IDC) motherboard header connection on one end and a panel mount DB9 male connector port on the other - a simple answer for adding a DB9 (RS232) serial port to any computer system which has an RS232 serial panel mount receptacle.

This cost-effective solution bridges the compatibility gap between modern computers and legacy serial peripherals.

The StarTech.com Advantage

- Extend the Motherboard IDC Serial Interface to an RS232 serial panel mount receptacle
- Combine legacy products with newer technology to satisfy all your business requirements
- Backed by the StarTech.com lifetime warranty

Specifications

Technical details
Weight	17 g
Certification	CE, REACH, RoHS
Connector 2	IDC
Connector 1	DB-9
Product colour	Grey
Cable length	0.4064 m
AWG wire size	28
Package width	128 mm
Package height	220 mm
Quantity per pack	1 pc(s)
Features
Weight	17 g
Certification	CE, REACH, RoHS
Connector 2	IDC
Connector 1	DB-9
Product colour	Grey
Cable length	0.4064 m
AWG wire size	28
Connector 2 gender	Female
Connector 1 gender	Male
Packaging data
Package weight	22 g
Package width	128 mm
Package height	220 mm
Quantity per pack	1 pc(s)
Weight & dimensions
Weight	17 g
Logistics data
Harmonized System (HS) code	84733080
