Description
C37, 1 LED (red/green/orange), DB9 F connector with external power supply, MiniDIN6 F/M connector, Ver. 1.1, HID, USB-A connector, CCD linear Sensor 2500 pixels, Black
This lightweight and ergonomically shaped device fits comfortably in anyone's hand, making it suitable for all-day scanning applications.
The C37 is available with the most popular interfaces: USB, Keyboard Wedge and RS232. This device is easily programmable to suite your application.
Description

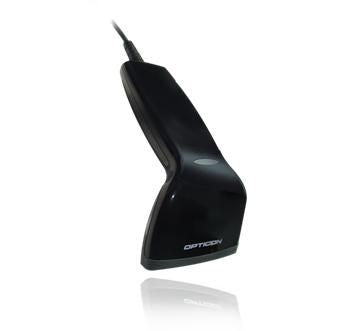

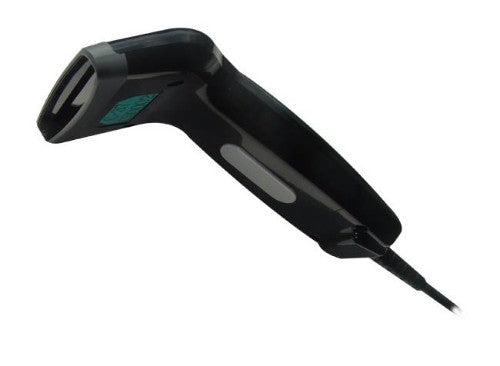

The C37 is a durable CCD scanner with a wide optical window. With its aggressive scan engine the C37 operates at a speed of 200 scans per second. Available in black and white, this sleek scanner fits on every desk.This lightweight and ergonomically shaped device fits comfortably in anyone's hand, making it suitable for all-day scanning applications.
The C37 is available with the most popular interfaces: USB, Keyboard Wedge and RS232. This device is easily programmable to suite your application.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128) |
| 2D (matrix & stacked) barcodes supported | MicroPDF417, PDF417 |
| Yaw reading angle | -70 - 70° |
| Wavelength | 630 nm |
| Tilt reading angle | -20 - 20° |
| Sensor type | CCD |
| Read rate (max) | 200 reads/s |
| Pitch reading angle | -35 - 35° |
| Light levels (direct sunlight) | 0 - 50000 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB version | 1.1 |
| Cable length | 1.5 m |
| Standard interfaces | USB |
| Performance | |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Buzzer | Yes |
| Light levels (direct sunlight) | 0 - 50000 lx |
| Design | |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Weight & dimensions | |
| Width | 53 mm |
| Depth | 75 mm |
| Height | 150 mm |
| Weight | 90 g |
| Technical details | |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Buzzer | Yes |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 50000 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
