Description

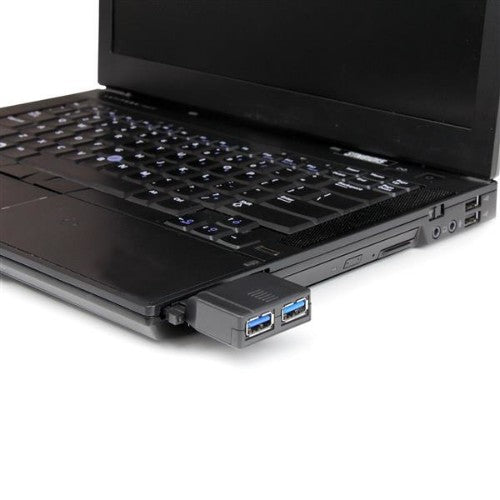

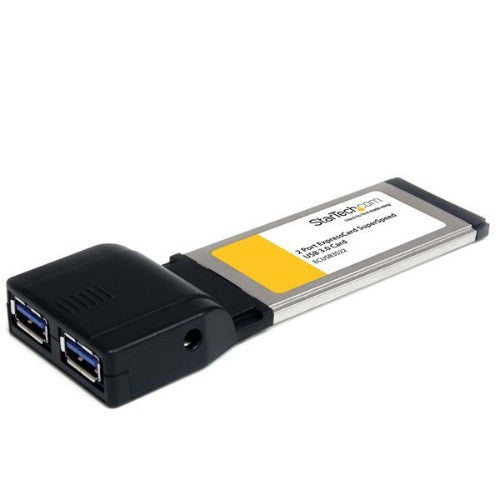

StarTech.com 2 Port ExpressCard SuperSpeed USB 3.0 Card Adapter with UASP - USB 3.0 Controller - USB 3.0 ExpressCard - USB 3.0 Adapter
The ECUSB3S22 2-Port ExpressCard USB 3.2 Gen 1 Card adds 2 SuperSpeed USB 3.2 Gen 1 ports to an ExpressCard-enabled computer system, using a 34mm form factor that will fit in both 34mm and 54mm slots, along with ports mounted side-by-side for easy access.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
USB 3.2 Gen 1 supports data transfer rates up to 5 Gbps (10x faster than USB 2.0) and is able to provide more power per port, to help support faster and more powerful devices. Also, this ExpressCard adapter is backward compatible with USB 2.0/1.x, so all of your existing devices will still work.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows® 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
Description
Add 2 USB 3.0 (USB 3.2 Gen 1) Ports to a Laptop through an ExpressCard SlotThe ECUSB3S22 2-Port ExpressCard USB 3.2 Gen 1 Card adds 2 SuperSpeed USB 3.2 Gen 1 ports to an ExpressCard-enabled computer system, using a 34mm form factor that will fit in both 34mm and 54mm slots, along with ports mounted side-by-side for easy access.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
USB 3.2 Gen 1 supports data transfer rates up to 5 Gbps (10x faster than USB 2.0) and is able to provide more power per port, to help support faster and more powerful devices. Also, this ExpressCard adapter is backward compatible with USB 2.0/1.x, so all of your existing devices will still work.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows® 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Host interface | ExpressCard |
| Technical details | |
| Chipset | NEC uPD720200 |
| Network | |
| Data transfer rate | 5 Gbit/s |
| Performance | |
| Chipset | NEC uPD720200 |
| Product colour | Black |
| Harmonized System (HS) code | 84733020 |
| Colour | |
| Product colour | Black |
| Design | |
| Internal | Yes |
| Product colour | Black |
| Features | |
| Chipset | NEC uPD720200 |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 150 °C |
| Operating relative humidity (H-H) | 0 - 60% |
| Weight & dimensions | |
| Width | 40 mm |
| Depth | 115 mm |
| Height | 12 mm |
| Weight | 33 g |
| Package width | 173 mm |
| Package depth | 144 mm |
| Package height | 32 mm |
| Package weight | 119 g |
| Packaging data | |
| Package width | 173 mm |
| Package depth | 144 mm |
| Package height | 32 mm |
| Package weight | 119 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Data transfer rate | 5 Gbit/s |
| Compatible operating systems | Windows XP(32/64-bit) / Server 2003(32/64-bit) / Vista(32/64-bit) / Server 2008 R2 / 7(32/64-bit) |
| Chipset | NEC uPD720200 |
