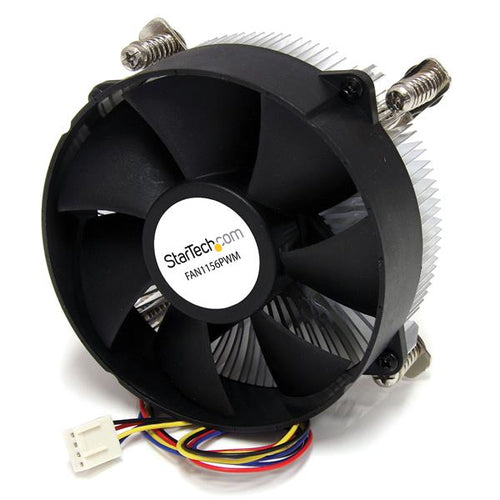

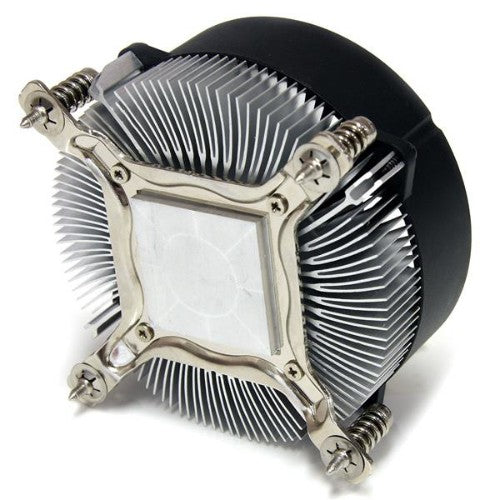

StarTech.com 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155 with PWM
The FAN1156PWM CPU Cooler with PWM Cooling Fan for Socket LGA1156/1155 systems provides reliable and efficient cooling for compatible Intel Core i3/i5/i7 CPUs.
With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- PWM control allows for dynamically variable fan speeds for maximum efficiency
- 95mm Ever Lubricate bearing fan for increased reliability and lifespan compared to traditional sleeve-bearing designs
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Description
Add a Variable Speed PWM-Controlled CPU Cooler to an LGA1156/1155 SystemThe FAN1156PWM CPU Cooler with PWM Cooling Fan for Socket LGA1156/1155 systems provides reliable and efficient cooling for compatible Intel Core i3/i5/i7 CPUs.
With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- PWM control allows for dynamically variable fan speeds for maximum efficiency
- 95mm Ever Lubricate bearing fan for increased reliability and lifespan compared to traditional sleeve-bearing designs
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Operating temperature (T-T) | -10 - 70 °C |
| Supported processor sockets | LGA 1156 (Socket H) |
| Mean time between failures (MTBF) | 40000 h |
| Design | |
| Product colour | Black |
| Technical details | |
| Type | Cooler |
| Supported processor sockets | LGA 1156 (Socket H) |
| Airflow | 65.61 CFM |
| Power | |
| Voltage | 12 V |
| Rated current | 0.35 A |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 70 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 65% |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 101 mm |
| Package width | 102 mm |
| Package height | 85 mm |
| Package weight | 313 g |
| Weight | 272 g |
| Endurance | |
| Mean time between failures (MTBF) | 40000 h |
| Packaging data | |
| Package depth | 101 mm |
| Package width | 102 mm |
| Package height | 85 mm |
| Package weight | 313 g |
| Other features | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 65% |
| Rotational speed | 3000 RPM |
| Dimensions (WxDxH) | 95 x 95 x 55 mm |
| Airflow | 65.61 CFM |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
