Description
AP w/ dual radios 802.11a/b/g/n 3x3 MIMO (3SS), 1x 1000BASe-T 802.3af Poe, 6 int. antennas.
Its energy-efficient 802.3af PoE power design, dual radios, 3x3 MIMO, 3 stream, and 1GbE uplink port, are packaged in the smallest footprint in its class. And its six internal cross-polarized antennas use 5 degree down-tilt to deliver maximum signal strength.

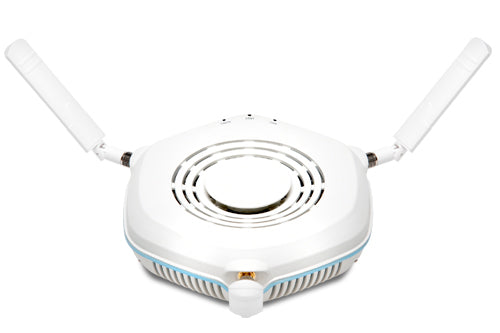

WLA532 requires fewer APs per floor, reducing CAPEX, and improved reliability reduces IT staff for lower OPEX. The WLA532E external antenna, plenum rated model allows for more deployment flexibility.
WLA532 delivers 450Mbps link speed per radio for 10x better performance than legacy 802.11a/g, and 50 percent more bandwidth and capacity than previous generation 11n Aps.
Local switching provides low latency and high performance, and advanced VLAN tunneling and autoTune Dynamic RF management, provides cutting edge performance.
Description
WLA532 delivers great user experience and lower operating and capital costs by tightly integrating security, performance, and manageability, with great reliability.Its energy-efficient 802.3af PoE power design, dual radios, 3x3 MIMO, 3 stream, and 1GbE uplink port, are packaged in the smallest footprint in its class. And its six internal cross-polarized antennas use 5 degree down-tilt to deliver maximum signal strength.
WLA532 requires fewer APs per floor, reducing CAPEX, and improved reliability reduces IT staff for lower OPEX. The WLA532E external antenna, plenum rated model allows for more deployment flexibility.
WLA532 delivers 450Mbps link speed per radio for 10x better performance than legacy 802.11a/g, and 50 percent more bandwidth and capacity than previous generation 11n Aps.
Local switching provides low latency and high performance, and advanced VLAN tunneling and autoTune Dynamic RF management, provides cutting edge performance.
Specifications
| Data transmission | |
|---|---|
| Wi-Fi data rate (max) | 450 Mbit/s |
| Data transfer rate | 1 Gbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi data rate (max) | 450 Mbit/s |
| Frequency band | 2.4, 5 GHz |
| VLAN support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Wireless LAN features | |
| Frequency band | 2.4, 5 GHz |
| Network | |
| Internal | No |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Management features | |
| VLAN support | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi data rate (max) | 450 Mbit/s |
| Frequency band | 2.4, 5 GHz |
| VLAN support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Maximum data transfer rate | 1000 Mbit/s |
| Security | |
| Security algorithms | 802.1x RADIUS, WEP, WPA, WPA-AES, WPA-TKIP, WPA2 |
| Ports & interfaces | |
| Interface | LAN |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Power | |
| Power consumption (typical) | 10 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Internal | No |
| LED indicators | Yes |
| Antenna | |
| Antennas quantity | 6 |
| Antenna direction type | Omni-directional |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 136.5 mm |
| Depth | 53.5 mm |
| Dimensions (WxDxH) | 136.5 x 53.5 x 145 mm |
| Weight | 393.2 g |
| Height | 145 mm |
| Other features | |
| Data transfer rate | 1 Gbit/s |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
