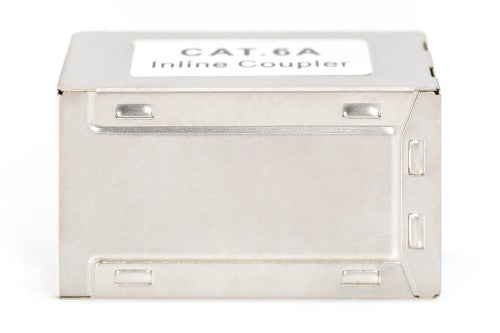

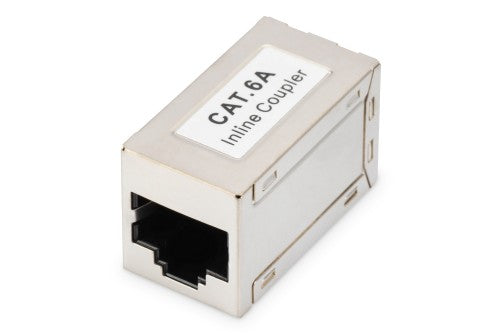

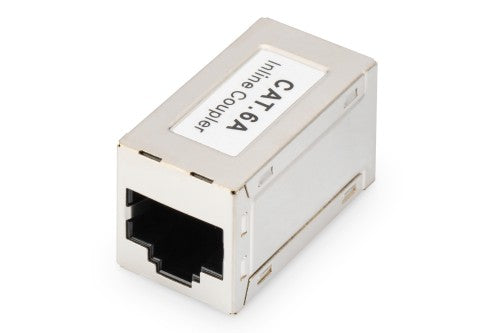

CAT6A modular coupler, full shielded RJ45 to RJ45
Key Features
- 2 x RJ-45 female
- Assignment: 1:1
- Shielded version
- Material enclosure: Brass sheet - shining Nickel plated
- Material PCB: FR4, 1.2 mm thickness
- Material contacts: Phosphor bronze
- Contacts coating: Nickel, gold plated 0.6 µ
- Mating cycles: ≥ 750
- Operating temperature: -10 °C ~+50 °C
Description
Corresponds with requirements channel performance Class EA ISO/IEC 11801 for up to 500 MHz
Specifications
| Features |
|---|
| Networking standards |
IEEE 802.3 |
| Product colour |
Metallic |
| Country of origin |
China |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 50 °C |
| Network |
|---|
| Networking standards |
IEEE 802.3 |
| Performance |
|---|
| Networking standards |
IEEE 802.3 |
| Design |
|---|
| Country of origin |
China |
| Product colour |
Metallic |
| Technical details |
|---|
| Networking standards |
IEEE 802.3 |
| Colour |
|---|
| Product colour |
Metallic |
| Logistics data |
|---|
| Country of origin |
China |
