Description

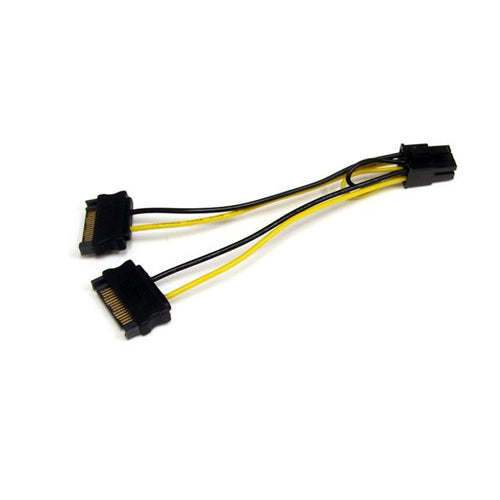

StarTech.com 6in SATA Power to 6 Pin PCI Express Video Card Power Cable Adapter - SATA to 6 pin PCIe power (SATPCIEXADAP)
The SATPCIEXADAP SATA to PCI Express Video Card Power Adapter Cable features a 6-pin PCI Express (male) power connector as well as two 15-pin SATA (male) power connectors, providing a cost-effective way to connect a PCIe video card to Serial ATA power connectors provided by the computer power supply, and eliminating the need to upgrade the power supply for the sake of video card compatibility.
NOTE: When powering a graphics card, we recommend using two separate power supply cables, each with a SATA power connector.
The StarTech.com Advantage
Key Features

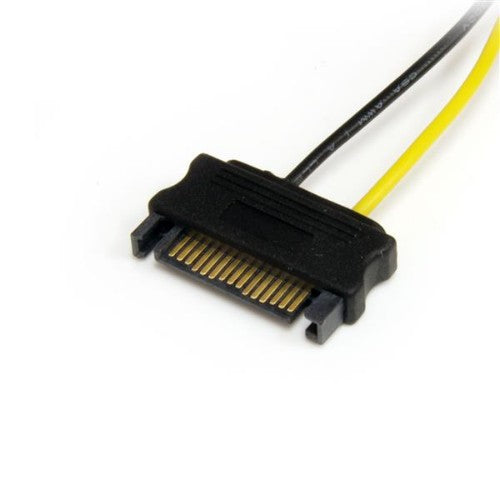

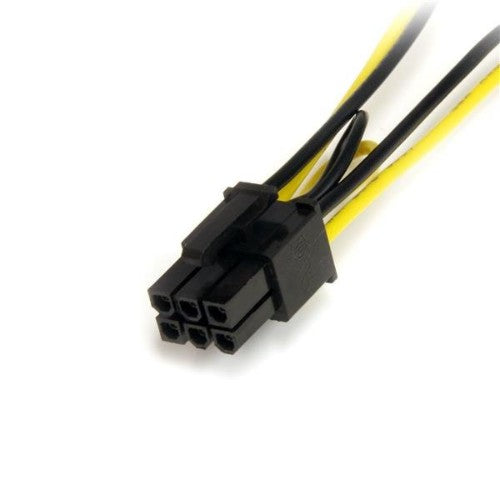

- SATA PCI EXPRESS POWER ADAPTER: 1x 6-pin PCI Express (male) connector to 2x 15-pin SATA (male) connectors; Connect a PCIe Video Card to a Power Supply that is not equipped with a PCIe connector
- SPECS: Cable length: 6.0in (15.2cm); Wire Gauge: 18AWG; Connector Plating: Gold; Jacket Material: PVC; Color: Black; Connector(s): 2x SATA Power (15 pin), 1x PCI Express Power (6 pin, v 1.x)
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this SATA to PCI Express video card power adapter cable is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Description
Convert two 15-pin SATA power supply connectors to a 6-pin PCI Express video card power connectorThe SATPCIEXADAP SATA to PCI Express Video Card Power Adapter Cable features a 6-pin PCI Express (male) power connector as well as two 15-pin SATA (male) power connectors, providing a cost-effective way to connect a PCIe video card to Serial ATA power connectors provided by the computer power supply, and eliminating the need to upgrade the power supply for the sake of video card compatibility.
NOTE: When powering a graphics card, we recommend using two separate power supply cables, each with a SATA power connector.
The StarTech.com Advantage
Specifications
| Features | |
|---|---|
| Connector 1 | SATA 15-pin |
| Connector 2 | PCI-E (6-pin) |
| Cable length | 0.15 m |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Product colour | Black, Yellow |
| Certification | CE, REACH |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Weight & dimensions | |
| Width | 31.2 mm |
| Depth | 152.4 mm |
| Height | 20 mm |
| Weight | 15 g |
| Package width | 128 mm |
| Package height | 220 mm |
| Package weight | 23 g |
| Packaging data | |
| Package width | 128 mm |
| Package height | 220 mm |
| Package weight | 23 g |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Jacket material | Polyvinyl chloride (PVC) |
