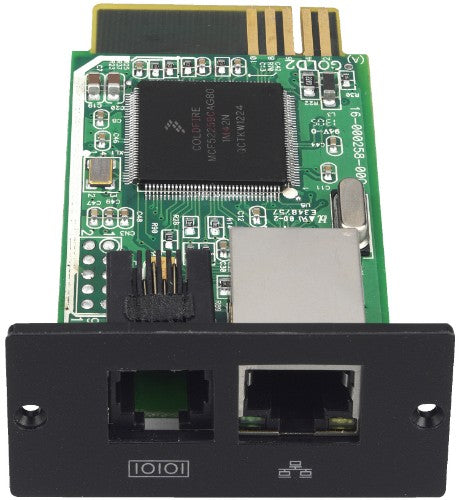

PowerWalker SNMP Module
Description
PowerWalker SNMP manager is a communication solution for UPS monitoring and control. This SNMP manager card allows remote monitor and manage multiple UPSs from anywhere with internet access. Integrated web access will leverage internet capability of SNMP manager to remotely program or shut down UPSs. Equipped with SNMP manager, power conditions of all UPSs can be monitored anytime/anywhere even though the UPS units are located in different floors. Besides, this card also come equipped with easy-to-update firmware feature. Whenever the updated firmware is released, system manager can download it and simply upgrade all with one click.
Specifications
| Features |
|---|
| Product type |
Network management card |
| Compatibility |
VFI 1000/1500/2000/3000 LCD VFI 1000C/2000C/3000C/6000C/10000C LCD VFI 1000RM/1500RM/2000RM/3000RM/6000R/10000R LCD VFI 10000CP/15000CP/20000CP/30000CP 3/3 |
| Ports & interfaces |
|---|
| Host interface |
SmartSlot |
| Ethernet LAN (RJ-45) ports |
2 |
| Network |
|---|
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Management features |
|---|
| Web-based management |
Yes |
| Weight & dimensions |
|---|
| Width |
23 mm |
| Depth |
47 mm |
| Height |
15 mm |
| Weight |
34.7 g |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Technical details |
|---|
| Harmonized System (HS) code |
85079080 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85079080 |
