Description

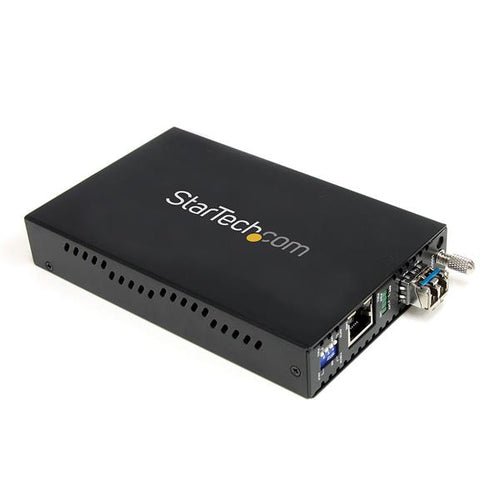

1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km
The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

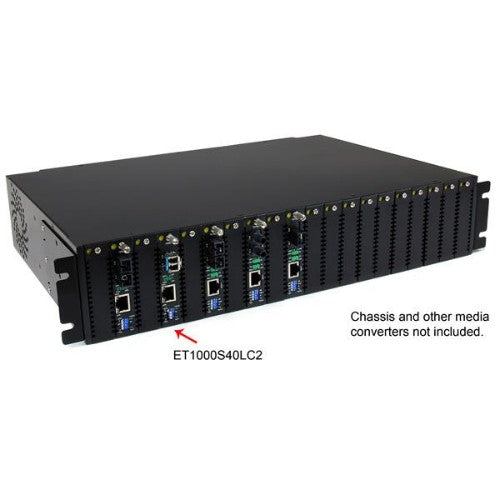

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for added durability in harsh environments
- Cost-effective way to extend/bridge networks using fiber cabling
Description
Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiberThe ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for added durability in harsh environments
- Cost-effective way to extend/bridge networks using fiber cabling
Specifications
| Network | |
|---|---|
| Fiber optic connector | LC |
| Converter input interface | 1000Base-T |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Duplex system | Full, Half |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 2000 Mbit/s |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 40000 m |
| Fiber mode structure | Single-mode |
| Plug and Play | Yes |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Performance | |
| Plug and Play | Yes |
| Wavelength | 1310 nm |
| Maximum transfer distance | 40000 m |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 65000 h |
| Weight & dimensions | |
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
| Weight | 620 g |
| Package depth | 138 mm |
| Package width | 205 mm |
| Package height | 89 mm |
| Package weight | 754 g |
| Ports & interfaces | |

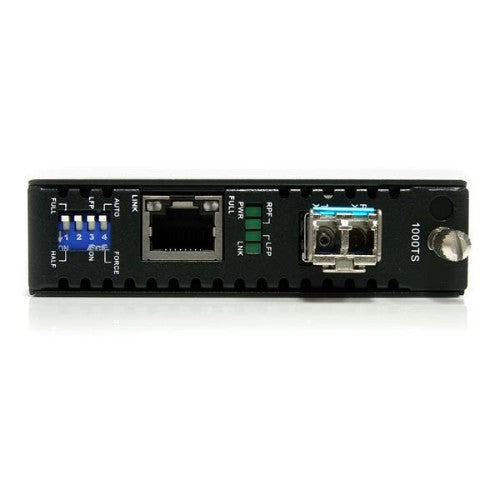

| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |

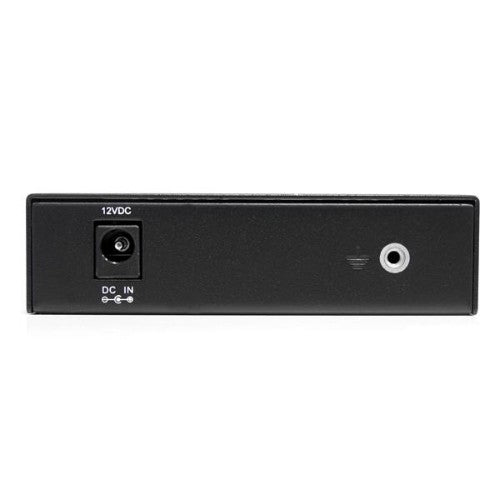

| DC-in jack | Yes |
| Design | |
| Product colour | Black |
| Certification | CE, FCC |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 65000 h |
| Power | |
| Output voltage | 12 V |
| Output current | 1 A |
| External power adapter | Yes |
| Management features | |
| Plug and Play | Yes |
| Colour | |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| Package depth | 138 mm |
| Package width | 205 mm |
| Package height | 89 mm |
| Package weight | 754 g |
| Packaging content | |
| Manual | Yes |
| Certificates | |
| Certification | CE, FCC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Full duplex | Yes |
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
