Description

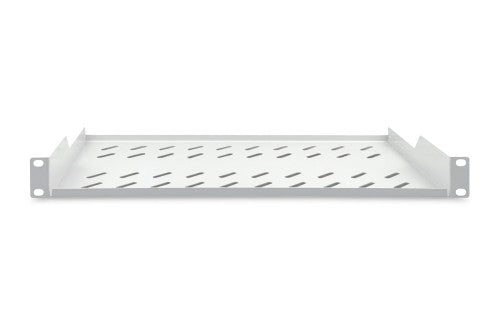

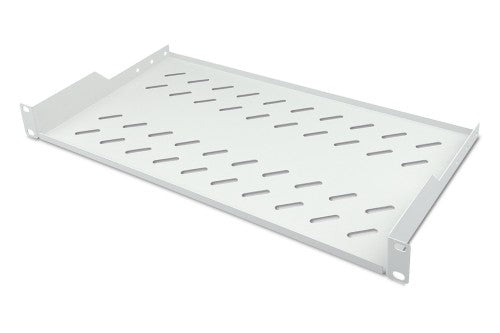

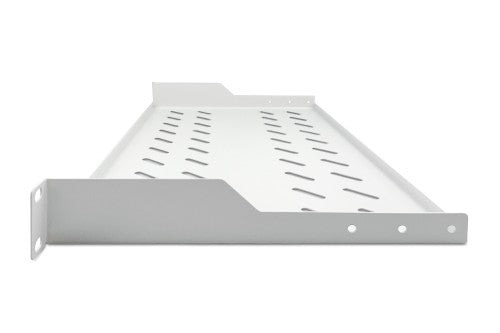

1U fixed shelf for racks from 400 mm depth 45x482x250 mm, up to 15 kg, grey (RAL 7035)

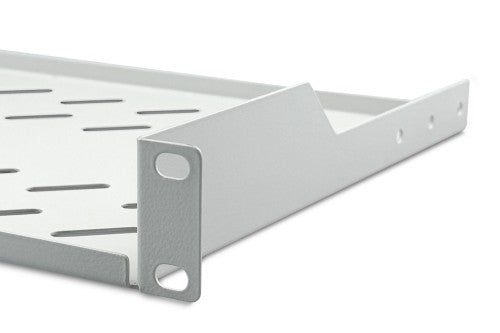

- Simple 2-point attachment to the 483 mm (19") profile rails via integrated mounting brackets with two screw holes each
- Slim design that only takes up 1 height unit
- Installation depth: 250 mm
- Load capacity of up to 15 kg
- Robust sheet steel construction with perforation for optimized air flow within the cabinet
The shelves for fixed installation can be easily installed on the front 483 mm (19") profile rails of your 483 mm (19") network or server enclosure. Thanks to the sturdy, perforated metal sheet with a high load capacity, they are the ideal support surface for components that cannot be installed in 483 mm (19") rails.
Key Features
- Fixed installation
- Sturdy, perforated metal sheet
- incl. mounting material
- 2-point mounting (front 19" profile rails)
- Width x depth of shelf inside: 441x250mm
Description
- Storage for accessories or components in the 483 (19") cabinet without own installation option- Simple 2-point attachment to the 483 mm (19") profile rails via integrated mounting brackets with two screw holes each
- Slim design that only takes up 1 height unit
- Installation depth: 250 mm
- Load capacity of up to 15 kg
- Robust sheet steel construction with perforation for optimized air flow within the cabinet
The shelves for fixed installation can be easily installed on the front 483 mm (19") profile rails of your 483 mm (19") network or server enclosure. Thanks to the sturdy, perforated metal sheet with a high load capacity, they are the ideal support surface for components that cannot be installed in 483 mm (19") rails.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 15 kg |
| Product colour | Grey |
| Harmonized System (HS) code | 85389099 |
| Country of origin | Turkey |
| Weight & dimensions | |
| Package volume | 6500 cm³ |
| Package width | 500 mm |
| Package depth | 260 mm |
| Package weight | 1.27 kg |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 15 kg |
| Packaging data | |
| Package volume | 6500 cm³ |
| Package width | 500 mm |
| Package depth | 260 mm |
| Package weight | 1.27 kg |
| Technical details | |
| Size (imperial) | 48.3 cm (19") |
| Form factor | 1U |
| Colour | |
| Product colour | Grey |
| Logistics data | |
| Harmonized System (HS) code | 85389099 |
| UK Trade Tariff code | 94039910 |
| Other features | |
| Form factor | 1U |
