Description

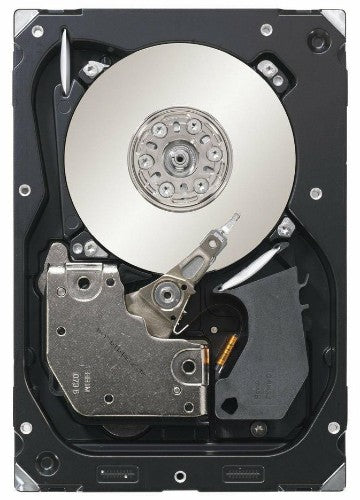

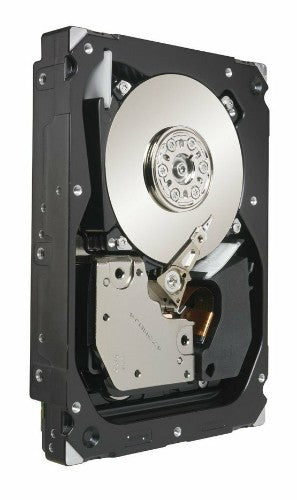

Cheetah 15K.7 300 GB SAS
Improve your performance by 15% by switching to Savvio 15K. Additionally, these drives deliver up to 10% faster random reads and up to 8% faster random writes vs. legacy 3.5-inch 15K drives.
Get more with Savvio 10K
Get 33% more capacity (Up to 900GB) with Cheetah 15K-like performance -168MB/s vs. 171MB/s of sustained throughput.
Savvio 10K hard drives offer OEMs and data center managers easy flexibility when upgrading and transitioning data storage systems.
Locked into 3.5” form factor?
Get 5X the capacity (Up to 3TB) by moving to the Constellation ES 7200-RPM hard drive.
Each generation of Constellation ES drives features industry-leading innovations that deliver consistent, scalable and reliable data access along with robust nearline performance for multi-drive enterprise solutions.
Description
Switch to 2.5” drives for cost-effective performanceImprove your performance by 15% by switching to Savvio 15K. Additionally, these drives deliver up to 10% faster random reads and up to 8% faster random writes vs. legacy 3.5-inch 15K drives.
Get more with Savvio 10K
Get 33% more capacity (Up to 900GB) with Cheetah 15K-like performance -168MB/s vs. 171MB/s of sustained throughput.
Savvio 10K hard drives offer OEMs and data center managers easy flexibility when upgrading and transitioning data storage systems.
Locked into 3.5” form factor?
Get 5X the capacity (Up to 3TB) by moving to the Constellation ES 7200-RPM hard drive.
Each generation of Constellation ES drives features industry-leading innovations that deliver consistent, scalable and reliable data access along with robust nearline performance for multi-drive enterprise solutions.
Specifications
| Hard drive | |
|---|---|
| Component for | Server/workstation |
| Write seek time | 3.9 ms |
| Read seek time | 3.4 ms |
| Average latency | 2 ms |
| HDD number of heads | 4 |
| Mean time between failures (MTBF) | 1600000 h |
| HDD speed | 15000 RPM |
| HDD size | 3.5" |
| HDD capacity | 300 GB |
| Features | |
| Type | HDD |
| Component for | Server/workstation |
| Interface | SAS |
| Write seek time | 3.9 ms |
| Read seek time | 3.4 ms |
| Average latency | 2 ms |
| HDD number of heads | 4 |
| Mean time between failures (MTBF) | 1600000 h |
| HDD speed | 15000 RPM |
| HDD size | 3.5" |
| HDD capacity | 300 GB |
| Storage drive buffer size | 16 MB |
| Power | |
| Power consumption (typical) | 12.92 W |
| Power consumption (idle) | 8.74 W |
| Operating voltage | 5 / 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating vibration | 1 G |
| Operating shock | 60 G |
| Non-operating vibration | 3 G |
| Non-operating shock | 300 G |
| Technical details | |
| Harmonized System (HS) code | 84717050 |
| Interface | SAS |
| Mean time between failures (MTBF) | 1600000 h |
| Weight & dimensions | |
| Width | 101.6 mm |
| Weight | 671 g |
| Height | 25.4 mm |
| Depth | 146.5 mm |
| Logistics data | |
| Harmonized System (HS) code | 84717050 |
| Other features | |
| Interface | SAS |
