Description

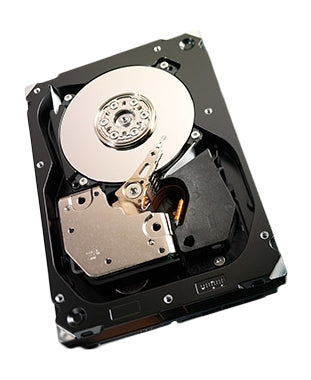

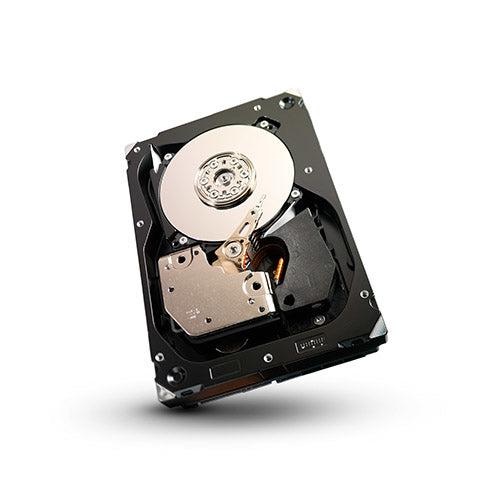

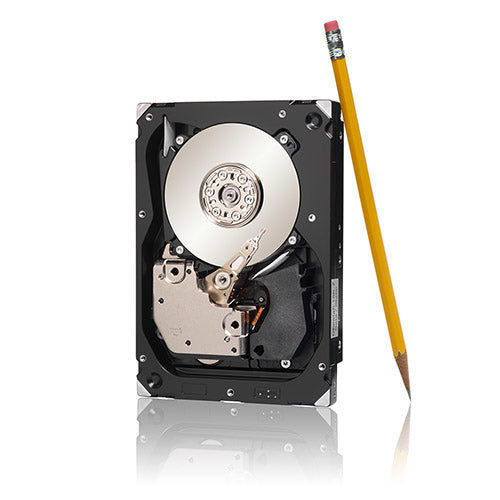

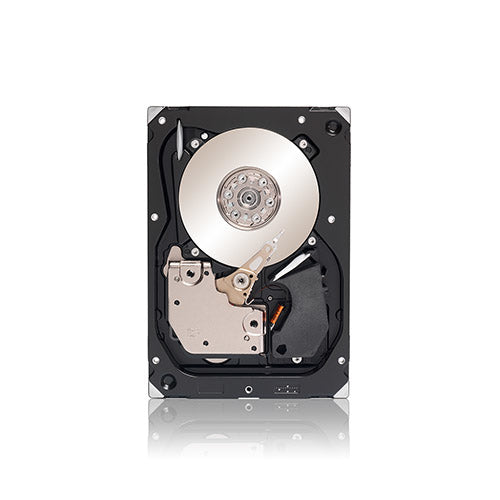

Cheetah 15K.7 600 GB SAS
- Third-generation perpendicular recording for maximum capacity
- Unprecedented performance with a 16 percent increase in sustained data rate over the last generation, up to 171 MB/sec.
- Industry’s highest 3.5-inch drive reliability at 1.6-million-hours MTBF.
- Seagate proprietary PowerTrim technology provides up to 21 percent improvement over the last generation in watts/GB at idle.
- Advanced read/write technology delivers unrecoverable error rate of 1x10E16 and AFR of 0.55 percent
- Available in 4Gb/s FC or 6Gb/s SAS interfaces
Description
The higher performance and capacity of Seagate Cheetah 15K.7 drives reduce storage costs per GB and increase capacity per watt. The drive has the industry’s highest reliability rating, reducing drive replacement costs. The Cheetah 15K.7 drive includes Seagate PowerTrim technology, which dynamically optimizes drive power consumption at all levels of activity.- Third-generation perpendicular recording for maximum capacity
- Unprecedented performance with a 16 percent increase in sustained data rate over the last generation, up to 171 MB/sec.
- Industry’s highest 3.5-inch drive reliability at 1.6-million-hours MTBF.
- Seagate proprietary PowerTrim technology provides up to 21 percent improvement over the last generation in watts/GB at idle.
- Advanced read/write technology delivers unrecoverable error rate of 1x10E16 and AFR of 0.55 percent
- Available in 4Gb/s FC or 6Gb/s SAS interfaces
Specifications
| Hard drive | |
|---|---|
| Component for | Server/workstation |
| Write seek time | 3.9 ms |
| Read seek time | 3.4 ms |
| Average latency | 2 ms |
| HDD number of heads | 8 |
| Mean time between failures (MTBF) | 1600000 h |
| HDD speed | 15000 RPM |
| HDD size | 3.5" |
| HDD capacity | 600 GB |
| Features | |
| Type | HDD |
| Component for | Server/workstation |
| Interface | SAS |
| Write seek time | 3.9 ms |
| Read seek time | 3.4 ms |
| Average latency | 2 ms |
| HDD number of heads | 8 |
| Mean time between failures (MTBF) | 1600000 h |
| HDD speed | 15000 RPM |
| HDD size | 3.5" |
| HDD capacity | 600 GB |
| Storage drive buffer size | 16 MB |
| Power | |
| Power consumption (typical) | 16.35 W |
| Power consumption (idle) | 11.68 W |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating vibration | 1 G |
| Operating shock | 60 G |
| Non-operating vibration | 3 G |
| Non-operating shock | 300 G |
| Technical details | |
| Harmonized System (HS) code | 84717050 |
| Interface | SAS |
| Mean time between failures (MTBF) | 1600000 h |
| Weight & dimensions | |
| Width | 101.6 mm |
| Weight | 686 g |
| Height | 25.4 mm |
| Depth | 146.5 mm |
| Logistics data | |
| Harmonized System (HS) code | 84717050 |
| Other features | |
| Interface | SAS |
