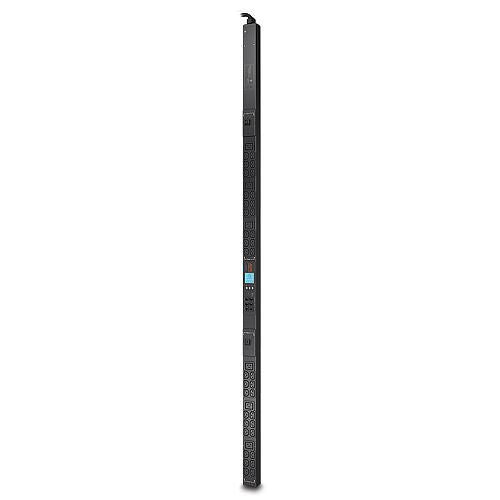

NetShelter Rack PDU, Metered, 0U, 5.0kW 200V and 208V 30A, (36) C13 and (6) C19 outlets
Description
The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8841 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
Specifications
| Design |
|---|
| Product colour |
Black |
| Certification |
CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE
RoHS,REACH |
| Ports & interfaces |
|---|
| Output connections |
36x IEC 320 C13
6x IEC 320 C19 |
| Input connection type |
NEMA L6-30P |
| Features |
|---|
| Cable length |
3 m |
| Certification |
CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE
RoHS,REACH |
| Ergonomics |
|---|
| Cable length |
3 m |
| Power |
|---|
| Maximum total current draw per phase |
30 A |
| Maximum input current per phase |
30 A |
| AC input frequency |
50 - 60 Hz |
| Certificates |
|---|
| Certification |
CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE
RoHS,REACH |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 45 °C |
| Storage temperature (T-T) |
-25 - 65 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Dimensions (WxDxH) |
56 x 44 x 1791 mm |
| Weight |
6.84 kg |
| Width |
56 mm |
| Depth |
44 mm |
| Height |
1791 mm |
| Package width |
162 mm |
| Package depth |
107 mm |
| Package height |
2000 mm |
| Package weight |
8.47 kg |
| Package dimensions (WxDxH) |
162 x 107 x 2000 mm |
| Packaging data |
|---|
| Package width |
162 mm |
| Package depth |
107 mm |
| Package height |
2000 mm |
| Package weight |
8.47 kg |
| Package dimensions (WxDxH) |
162 x 107 x 2000 mm |
| Technical details |
|---|
| Total carbon footprint (kg of CO2e) |
27252.29 |
| Logistics data |
|---|
| Total carbon footprint (kg of CO2e) |
27252.29 |
