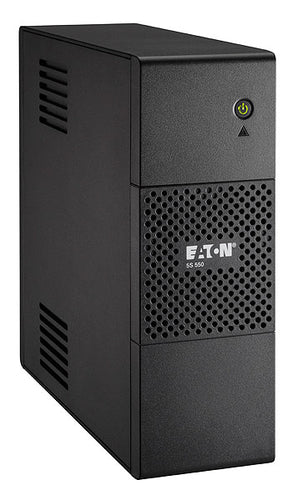

5S 550i
Description
The Eaton 5S UPS provides cost-effective line-interactive backup power and voltage regulation for small and medium businesses with workstations, desktop PCs, telephone equipment and POS applications. With its compact form factor, the 5S UPS can be utilized as a standalone tower or under a computer monitor.
Specifications
| Power |
|---|
| Output power |
330 W |
| Input operation voltage (min) |
175 V |
| Input operation voltage (max) |
275 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Output power capacity |
0.55 kVA |
| Performance |
|---|
| LED indicators |
Yes |
| Surge protection |
Yes |
| Surge protection features |
Fax, Modem, Network, Telephone |
| Noise level |
40 dB |
| Features |
|---|
| Output power |
330 W |
| Input operation voltage (min) |
175 V |
| Input operation voltage (max) |
275 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Surge protection |
Yes |
| Surge protection features |
Fax, Modem, Network, Telephone |
| Noise level |
40 dB |
| Output power capacity |
0.55 kVA |
| Input frequency |
50/60 Hz |

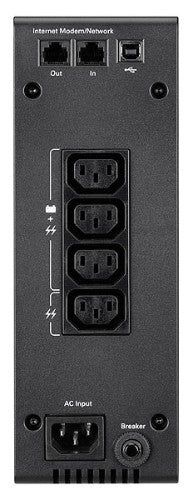

| Ports & interfaces |
|---|
| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| USB 2.0 ports quantity |
1 |
| Modem (RJ-11) ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at half load |
10 min |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Design |
|---|
| Form factor |
Tower |
| LED indicators |
Yes |
| Product colour |
Black |
| Safety |
IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Weight & dimensions |
|---|
| Weight |
4.96 kg |
| Width |
87 mm |
| Height |
250 mm |
| Depth |
260 mm |
| Certificates |
|---|
| Safety |
IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE |
