Description

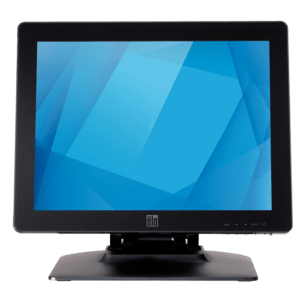

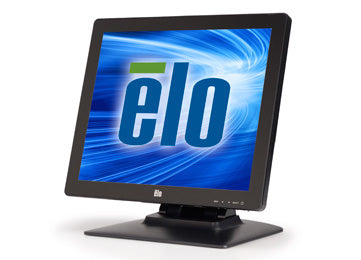

1723L, Desktop Touchmonitor, iTouch Plus, Multi-touch, 17", 5:4, 1280 x 1024, 170/160, 800:1, Mini D-Sub, DVI-D
- Integrated peripheral options include a Magnetic Stripe Reader (MSR), RFID reader and webcam
- Integrated cable management
- iTouch Plus surface acoustic wave (SAW) touchscreen couples zero-bezel design with multi-touch functionality
- Dual position stand - single hinge with high/low settings and tilt functionality
- Desktop, wall or VESA mounting
- Internal speakers
Description
The Elo Touch Solutions 1723L 17-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions and includes options for 3-track Magnetic Stripe Reader (MSR), webcam, RFID reader and brackets for mounting a 0700L rear facing customer display. iTouch Plus zero-bezel multi-touch surface acoustic wave touchscreen technology provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission-for an accurate touch response and vivid images. iTouch Plus offers a unique, aesthetically-pleasing seamless design and is resistant to water, impacts, scratches and other contaminants on the screen.- Integrated peripheral options include a Magnetic Stripe Reader (MSR), RFID reader and webcam
- Integrated cable management
- iTouch Plus surface acoustic wave (SAW) touchscreen couples zero-bezel design with multi-touch functionality
- Dual position stand - single hinge with high/low settings and tilt functionality
- Desktop, wall or VESA mounting
- Internal speakers
Specifications
| Display | |
|---|---|
| Display number of colours | 16.78 million colours |
| Touchscreen | Yes |
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 225 cd/m² |
| Response time | 30 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Supported graphics resolutions | 720 x 400, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Native aspect ratio | 5:4 |
| Touchscreen technology | Surface acoustic wave |
| Audio | |
| Built-in speaker(s) | Yes |
| Design | |
| Product colour | Black |
| Panel mounting interface | 75 x 75 mm |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| Weight & dimensions | |
| Width (with stand) | 391 mm |
| Height (with stand) | 209 mm |
| Depth (with stand) | 360 mm |
| Weight (with stand) | 5.21 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Technical details | |
| Dimensions (W x D x H) with stand | 391 x 360 x 209 mm |
| Display viewable area (HxV) | 337 x 270 mm |
| Weight (with stand) | 5.21 kg |
| Other features | |
| Dimensions (W x D x H) with stand | 391 x 360 x 209 mm |
| Display viewable area (HxV) | 337 x 270 mm |
| Width (with stand) | 391 mm |
| Mean time between failures (MTBF) | 50000 h |
| Height (with stand) | 209 mm |
| Depth (with stand) | 360 mm |
| Aspect ratio | 5:4 |
| Weight (with stand) | 5.21 kg |
