Description
Gigabit PoE+ Injector
Auto sensing technology delivers 30 Watts to 802.3at PoE+ devices or 15 Watts to 802.3af PoE devices. No need to buy a PoE switch—use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations.
Key Features
- Full Duplex Gigabit speeds
- Supplies PoE (15.4W) or PoE+ (30W) power
- Integrated power supply
- Network a PoE device located up to 100 meters (328 ft.) away
- Converts a non-PoE Gigabit port to a PoE+ Gigabit port
- Save on installation and equipment costs
- IEEE 802.3af and IEEE 802.3at compliant
- NDAA / TAA compliant (U.S. and Canada only)
Description

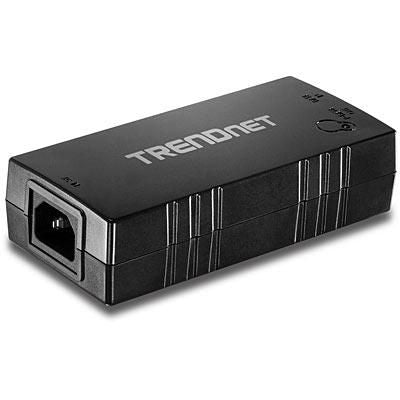

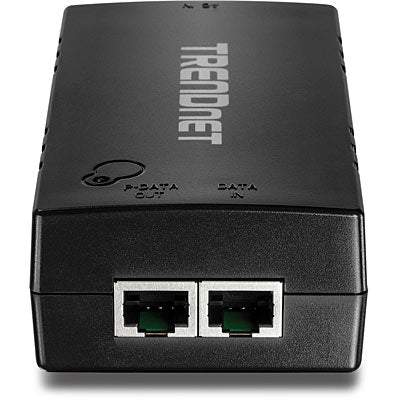

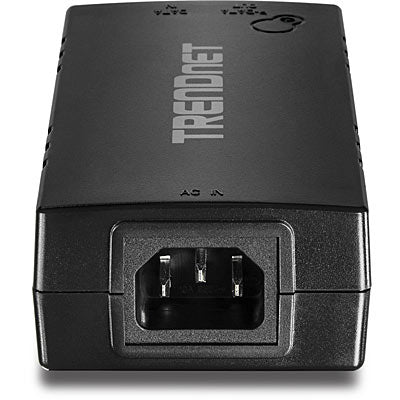

The Gigabit PoE+ Injector, model TPE-115GI, combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet Plus (PoE+) signal. Connect this device to a non-PoE Gigabit switch and then run an Ethernet cable for up to 100 meters (328 ft.) to network PoE+ or PoE devices. The integrated power supply reduces installation clutter.Auto sensing technology delivers 30 Watts to 802.3at PoE+ devices or 15 Watts to 802.3af PoE devices. No need to buy a PoE switch—use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations.
Specifications
| Network | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | Cat. 5/5e |
| Compliance industry standards | IEEE 802.3/802.3u/802.3ab/802.3at/802.3af |
| Features | |
| LED indicators | Yes |
| Certification | CE, FCC |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (typical) | 30 W |
| Input current | 0.65 A |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Certificates | |
| Compliance industry standards | IEEE 802.3/802.3u/802.3ab/802.3at/802.3af |
| Certification | CE, FCC |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Weight | 162 g |
| Technical details | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 30 W |
| Input current | 0.65 A |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Compliance industry standards | IEEE 802.3/802.3u/802.3ab/802.3at/802.3af |
| Harmonized System (HS) code | 85044095 |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
