Description

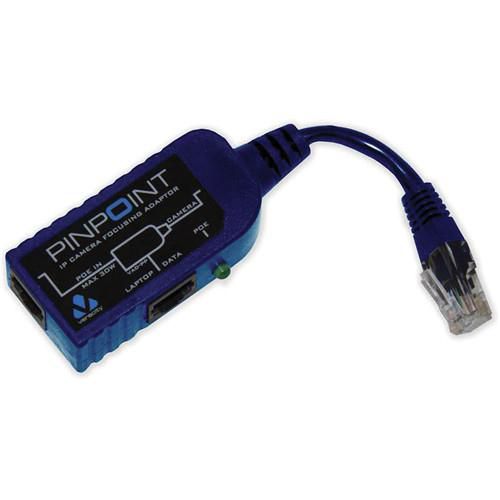

PINPOINT Setup/focus adaptor for POE-powered IP cameras
Universally compatible, the Pinpoint IP Camera Setup Adaptor supports IEEE 802.3af PoE, POE Plus, non-standard types of PoE up to 30W, 10BASE-T and 100BASE-TX Ethernet. The compact adaptor (65 x 32 x 20 mm) also features an LED that indicates PoE.
- IP video installation tool for viewing and configuration of an IP PoE camera using a laptop or other portable device
- Installation without removing camera from the network and losing PoE power
- Time-saving method for accurately focusing IP PoE cameras with a standard Cat5E patch cable
- IEEE 802.3af PoE, POE Plus, non-standard types of PoE up to 30W, 10BASE-T and 100BASE-TX Ethernet
- Compact adaptor (65 x 32 x 20 mm)
- LED indicator for PoE
Description

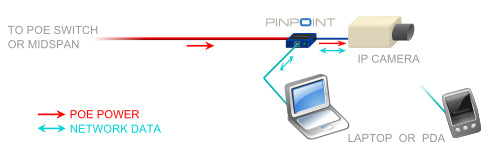

The Veracity Pinpoint IP Camera Setup Adaptor is an IP video installation tool for viewing and configuration of IP PoE cameras using a laptop or other portable device, without removing the camera from the network and losing PoE power. Compared to the trial-and-error process where an installer works with a partner in the control room communicating via phone or radio, the adaptor can be installed by a single installer in less time enabling precise camera configuration for the best image possible.Universally compatible, the Pinpoint IP Camera Setup Adaptor supports IEEE 802.3af PoE, POE Plus, non-standard types of PoE up to 30W, 10BASE-T and 100BASE-TX Ethernet. The compact adaptor (65 x 32 x 20 mm) also features an LED that indicates PoE.
- IP video installation tool for viewing and configuration of an IP PoE camera using a laptop or other portable device
- Installation without removing camera from the network and losing PoE power
- Time-saving method for accurately focusing IP PoE cameras with a standard Cat5E patch cable
- IEEE 802.3af PoE, POE Plus, non-standard types of PoE up to 30W, 10BASE-T and 100BASE-TX Ethernet
- Compact adaptor (65 x 32 x 20 mm)
- LED indicator for PoE
Specifications
| Ports & interfaces | |
|---|---|
| Internal | No |
| Connector(s) | 2 x PoE RJ-45, 1 x RJ-45 |
| Ethernet LAN (RJ-45) ports | 3 |
| Interface | Ethernet |
| Host interface | RJ-45 |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 100 Mbit/s |
| Network | |
| Ethernet LAN | Yes |
| Cabling technology | 10/100BaseT(X) |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Maximum data transfer rate | 100 Mbit/s |
| Design | |
| Certification | CE, FCC |
| Internal | No |
| LED indicators | Yes |
| Indication | |
| Power LED | Yes |
| Link/Act LED | Yes |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 70 °C |
| Weight & dimensions | |
| Width | 65 mm |
| Depth | 32 mm |
| Height | 20 mm |
| Weight | 58 g |
| Certificates | |
| Certification | CE, FCC |
| Technical details | |
| Compliance certificates | RoHS |
| Other features | |
| Power LED | Yes |
| Link/Act LED | Yes |
| Connector(s) | 2 x PoE RJ-45, 1 x RJ-45 |
