Cisco Small Business Catalyst 2960X-24PS-L Network Switch, 24 Gigabit Ethernet Ports, 370W PoE Budget, four 1 G SFP Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-24PS-L)

Catalyst 2960X-24PS-L Network Switch, 24 Gigabit Ethernet Ports, 370W PoE Budget, four 1 G SFP Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-24PS-L)

Key Features

• ETHERNET PORT CONFIGURATION: 24 10/100/1000 Gigabit Ethernet ports, four 1 G SFP uplink ports

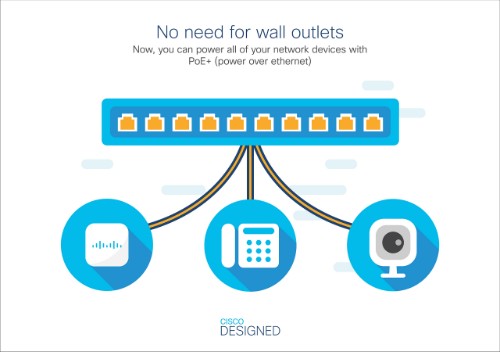

• POWER: PoE+ support with a power budget of up to 370W and Perpetual PoE; max. of 24 PoE ports (or 12 PoE+ ports)
• DEVICE MANAGEMENT: Web UI, over-the-air access via Bluetooth, CLI (command-line interface), SNMP (Simple Network Management Protocol) and RJ-45 or USB console access
• SECURITY: 802.1X, Switched Port Analyser (SPAN) and Bridge Protocol Data Unit (BPDU) Guard
• PEACE OF MIND: Enhanced limited lifetime warranty

Reasons To Buy

Stackable

Allows stacking of up to 8 switches and 80 Gbps bandwidth with the optional Cisco FlexStack+ module.

Auto Smart Ports

Automatically configures ports based on device type for rapid deployment with Auto Smart Ports.

Cisco TrustSec

Helps enable scalable and dynamic role-based access control with Cisco TrustSec.

NetFlow Lite

Built for application visibility and control - NetFlow Lite prioritizes business applications.

Limited lifetime warranty

The enhanced limited lifetime warranty provides the same terms as Cisco’s standard limited lifetime warranty, but adds next business day delivery of
replacement hardware, where available, and 90 days of 8X5 Cisco Technical Assistance Center (TAC)
support.

Description

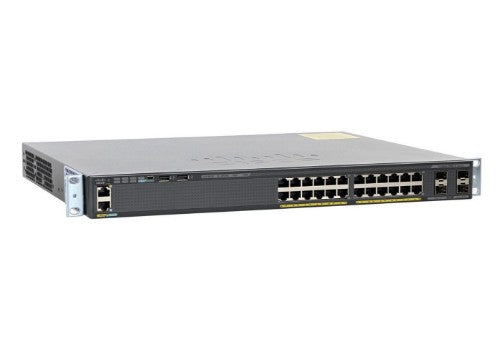

The Cisco Catalyst 2960X-24PS-L Network Switch is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class access for campus and branch applications. This Ethernet switch operates on Cisco IOS Software and supports simple device and network management. It offers advanced Layer 2 and Layer 3 features as well as optional PoE+ power. The switches deliver enhanced application visibility, network reliability and network resiliency.

Specifications

Management features
Multicast support	Yes
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
MIB support	Yes
Switch layer	L2/L3
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Number of VLANs	1023
Link aggregation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Virtual LAN features	Private VLAN
Virtual LAN features
VLAN support	Yes
Number of VLANs	1023
Virtual LAN features	Private VLAN
Data transmission
Number of multicast groups filtered	1000
Number of VLANs	1023
Jumbo frames	9216
Throughput	71.4 Mpps
Number of static routes	1000
MAC address table	16000 entries
Switching capacity	216 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Performance
Stackable	Yes
Auto-negotiation	Yes
Physical stacking (units)	8
Processor frequency	600 MHz
Noise level	39 dB
Memory type	DRAM
Mean time between failures (MTBF)	324280 h
Internal memory	512 MB
Flash memory	128 MB
Built-in processor	Yes
Processor model	AppliedMicro APM8639
Harmonized System (HS) code	85176990
Technical details
Physical stacking (units)	8
Form factor	1U
Product colour	Black
Stackable	Yes
Processor frequency	600 MHz
Noise level	39 dB
Mean time between failures (MTBF)	324280 h
Rack mounting	Yes
Built-in processor	Yes
Products per shipping (inner) case	1 pc(s)
Ports & interfaces
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
USB 2.0 ports quantity	2
Console port	RJ-45
Security
Authentication	MAC-based authentication, Port-based authentication
Access Control List (ACL) rules	3
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, SNMP, SSH
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP server
Multicast features
Number of multicast groups filtered	1000
Multicast support	Yes
Protocols
Management protocols	SNMPv3
Switching protocols	UDP, TCP, RADIUS/TACACS+
Certificates
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Memory
Memory type	DRAM
Internal memory	512 MB
Flash memory	128 MB
Design
Country of origin	China
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Form factor	1U
Product colour	Black
Stackable	Yes
LED indicators	Yes
Rack mounting	Yes
Market segment	Business
Indication
Power LED	Yes
LED indicators	Yes
Packaging content
Packaging content	WS-C2960X-24PS-L Switch, Accessory Kit, 1 printed document
User guide	Yes
Cables included	AC
Power
Power plug type	Type C
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	49 W
Redundant power supply (RPS) support	Yes
Number of power supply units	1
Input current	5 A
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	12
Total Power over Ethernet (PoE) budget	370 W
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-25 - 70 °C
Storage relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	-5 - 40 °C
Operating relative humidity (H-H)	10 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4000 m
Weight & dimensions
Width	445 mm
Depth	368 mm
Height	45 mm
Weight	5.8 kg
Packaging data
Package width	469.9 mm
Package depth	549.4 mm
Package height	147.6 mm
User guide	Yes
Package weight	7.07 kg
Cables included	AC
Logistics data
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)
Other features
Power LED	Yes
Packaging content	WS-C2960X-24PS-L Switch, Accessory Kit, 1 printed document
Country of origin	China
