Description
StarTech.com HDMI Over CAT5e / CAT6 Extender with Power Over Cable - 165 ft (50m) HDMI Video/Audio Over Dual Ethernet Cable Extender (ST121SHD50)
The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.
With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.
For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.

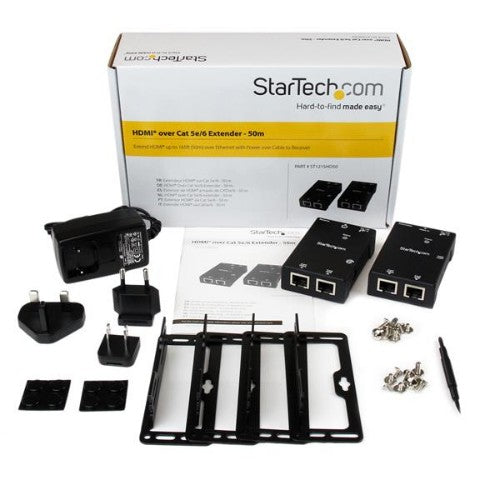

The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
The StarTech.com Advantage
Key Features
- Power Over Cable allows a single power source to operate the Transmitter and Receiver
- Supports Cat5e or Cat6 Ethernet cabling (50m)
- No software/drivers required
- Supports HD resolutions up to 1080p (1920x1080)
- Includes transmitter (local) and receiver (remote) units
Description
Extend HDMI® up to 165ft (50m) over Cat5e/6 cabling with Power over Cable to ReceiverThe ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.
With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.
For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.
The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
The StarTech.com Advantage
Specifications
| Features | |
|---|---|
| Material | Aluminium |
| Rack mounting | Yes |
| Daisy chain | No |
| Certification | CE, FCC, REACH, TAA |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 50 m |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| LED indicators | Power |
| Product colour | Black |
| Technical details | |
| Material | Aluminium |
| Rack mounting | Yes |
| Daisy chain | No |
| Certification | CE, FCC, REACH, TAA |
| Ethernet LAN | Yes |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 50 m |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Product colour | Black |
| Connectivity technology | Wired |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Power | |
| Input current | 0.5 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Operating voltage | 12 V |
| Indication | |
| LED indicators | Power |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Receiver weight | 157 g |
| Transmitter weight | 157 g |
| Transmitter dimensions (WxDxH) | 51 x 80 x 21 mm |
| Receiver dimensions (WxDxH) | 51 x 80 x 21 mm |
| Package depth | 237 mm |
| Package width | 157 mm |
| Package height | 65 mm |
| Package weight | 935 g |
| Packaging data | |
| Package depth | 237 mm |
| Package width | 157 mm |
| Package height | 65 mm |
| Package weight | 935 g |
| Packaging content | |
| Mounting brackets included | Yes |
| Cables included | HDMI |
| AC adapter included | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 320 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 12 pc(s) |
