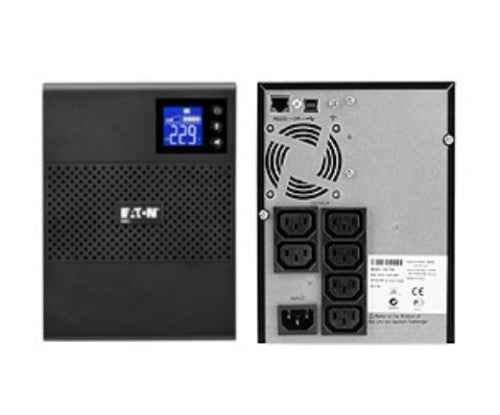

Eaton 5SC750i uninterruptible power supply (UPS) 0.75 kVA 525 W 6 AC outlet(s)

750VA, 525W, 1 x C14 In, 6 x C13

Description

Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business servers. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, and provides sinewave output for compatibility with today’s most sensitive IT equipment.

Specifications

Power
Output power	525 W
Input operation voltage (min)	184 V
Input operation voltage (max)	276 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Efficiency	97%
Output power capacity	0.75 kVA
Performance
Waveform	Sine
LED indicators	Yes
Power protection features	Overload
Noise level	40 dB
Audible alarm(s)	Yes
Features
Waveform	Sine
Output power	525 W
Input operation voltage (min)	184 V
Input operation voltage (max)	276 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Efficiency	97%
Power protection features	Overload
Noise level	40 dB
Audible alarm(s)	Yes
Output power capacity	0.75 kVA
Input frequency	50/60 Hz
Ports & interfaces
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
RS-232 ports	1
Battery
Typical backup time at half load	12 min
Typical backup time at full load	5 min
Design
Form factor	Tower
LED indicators	Yes
Product colour	Black
Safety	IEC 62040-1, CB Report (TUV)
Certification	CE/GS/C-Tick
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-15 - 40 °C
Operating altitude	0 - 3000 m
Technical details
Harmonized System (HS) code	85078000
Weight & dimensions
Weight	10.4 kg
Width	150 mm
Height	210 mm
Depth	340 mm
Logistics data
Harmonized System (HS) code	85078000
Certificates
Safety	IEC 62040-1, CB Report (TUV)
Certification	CE/GS/C-Tick
Other features
Nominal output voltage	230 V
Nominal input voltage	230 V
