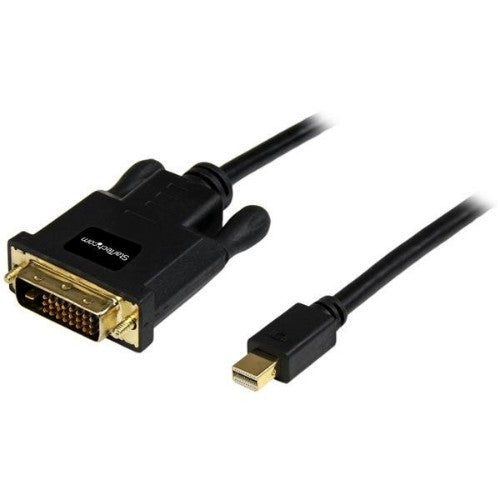

StarTech.com 3ft (0.9m) Mini DisplayPort to DVI Cable - Mini DP to DVI Adapter Cable - 1080p Video - Passive mDP 1.2 to DVI-D Single Link - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor (MDP2DVIMM3B)
Key Features
- MINI DISPLAYPORT TO DVI CABLE: 3ft (0.9m) Mini DisplayPort 1.2 (HBR2) to DVI-D (digital only) single-link cable connects a DVI display / 1080p 60Hz or 4K 30Hz (monitor w/ HDMI clock rate); EDID pass-through ensures compatibility between source & display
- HOST COMPATIBILITY: Passive video converter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INTEGRATED DISPLAY CABLE: Mini DisplayPort to DVI adapter cable has slim & flexible design with adapter chip built into VGA connector reducing clutter & providing a tidy install in the office, boardroom or home office
- INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to VGA display adapter cable / Supports DVI screw locking cable to prevent accidental disconnection / mDP male to DVI male
- EASY TO USE: With no software or drivers required, the Mini DP to DVI converter cable/cord works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort
Description
Connect a DVI display to a Mini DisplayPort-equipped PC or MAC® over a short 3 foot distance, with a tidy installation – BlackThe StarTech.com Advantage
Specifications
| Features |
|---|
| Converter type |
Passive |
| Chipset |
NXP - 3361 |
| DisplayPort version |
1.2 |
| Product colour |
Black |
| Cable length |
0.9 m |
| Connector 1 |
mini DisplayPort |
| Connector 2 |
DVI-D |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Maximum resolution |
1920 x 1200 pixels |
| Supported video modes |
1080p |
| Plug and Play |
Yes |
| Certification |
CE, FCC, REACH |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Dual Link DVI |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
0 - 70 °C |
| Operating relative humidity (H-H) |
40 - 85% |
| Other features |
|---|
| Width |
38 mm |
| Height |
15 mm |
| Depth |
920 mm |
| Weight & dimensions |
|---|
| Width |
38 mm |
| Height |
15 mm |
| Depth |
920 mm |
| Weight |
69.4 g |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
17 mm |
| Package weight |
86 g |
| Packaging data |
|---|
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
17 mm |
| Package weight |
86 g |
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Master (outer) case width |
420 mm |
| Master (outer) case length |
430 mm |
| Master (outer) case height |
430 mm |
| Products per master (outer) case |
220 pc(s) |
| Harmonized System (HS) code |
84733080 |
