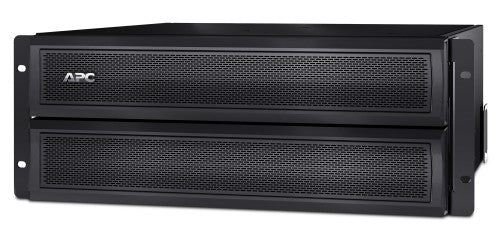

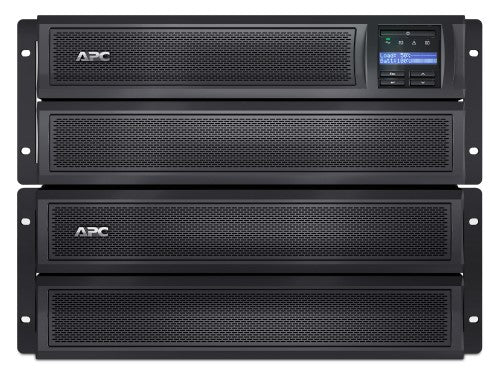

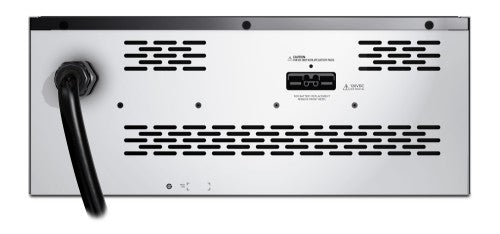

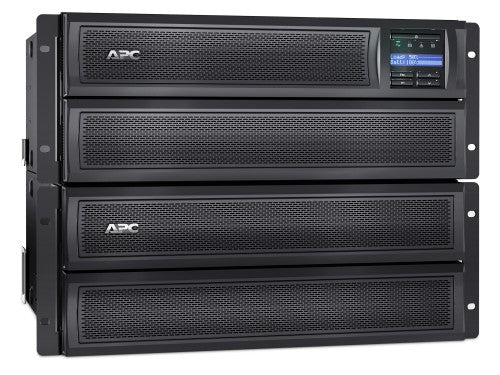

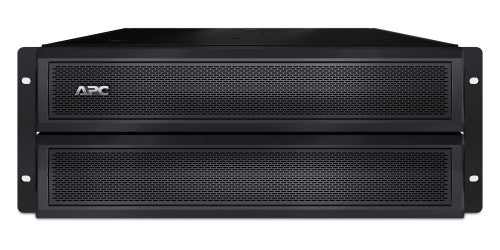

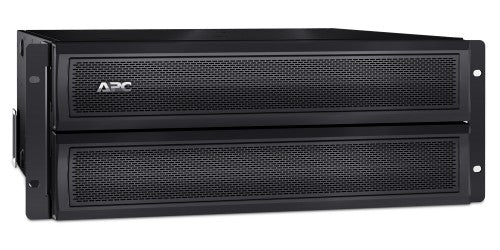

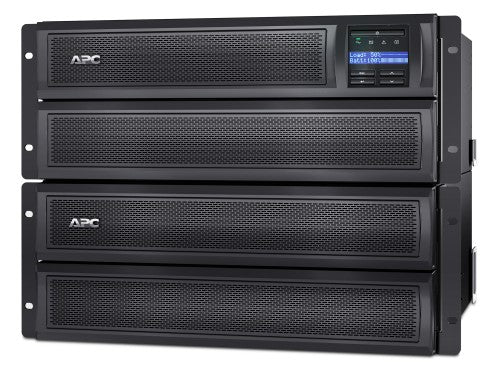

Smart-UPS X-Series External Battery Pack Rack/Tower 120V, 1200VAh, rackmount, 4U
Description
Easily connect this external battery pack to an existing APC Smart-UPS X to instantly increase the amount of battery runtime to connected devices during a power outage. Please refer to your APC Smart-UPS X manual to confirm compatibility with this external battery back. The battery pack offers easy plug-and-play installation onto an operating APC Smart-UPS, ensuring power availability while runtime capacity is added. Through the APC Smart-UPS’ intelligent battery management and precision charging, the battery pack maintains the UPS system’s performance, reliability, and useful life. The APC battery pack provides scalable runtime to the APC Smart-UPS X, allowing multiple battery packs to be quickly added if the need arises. The battery pack operates equally in tower configuration, standing next to an APC Smart-UPS, or in rack-mount configuration, mounted below the UPS. Package Includes APC SMX120BP External Battery Pack, installation guide, and rack-mounting brackets.
Specifications
| Features |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
1200 VAh |
| Battery voltage |
120 V |
| Certification |
REACH |
| Battery life |
3 year(s) |
| Hot-swap battery |
Yes |
| Product colour |
Black |
| Technical details |
|---|
| Harmonized System (HS) code |
85044095 |
| Total carbon footprint (kg of CO2e) |
299.69 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
60.9 kg |
| Width |
432 mm |
| Height |
178 mm |
| Depth |
483 mm |
| Packaging data |
|---|
| Package width |
586 mm |
| Package height |
330 mm |
| Package depth |
633 mm |
| Package weight |
65.5 kg |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Logistics data |
|---|
| Harmonized System (HS) code |
85044095 |
