Description
1.25 Gbps, SFP, LC, 1550 nm, 120 km, 20 g
- 1550nm DFB LD
- APD Receiver
- Data Rate: 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement (MSA)
- Small Form Factor Pluggable (SFP)
- Duplex LC Connector
- Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25Gbps
- Compliance with ANSI specifications for Fiber
- Channel applications at 1.06bps
- No configuration or installation software required
- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1
Description

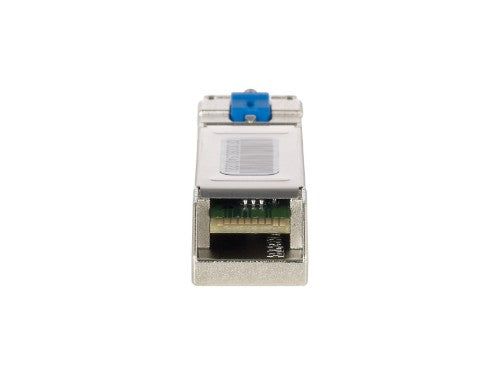

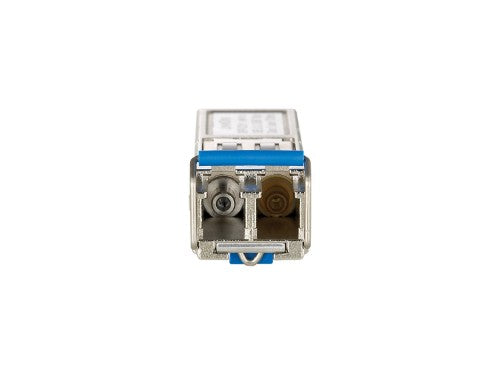

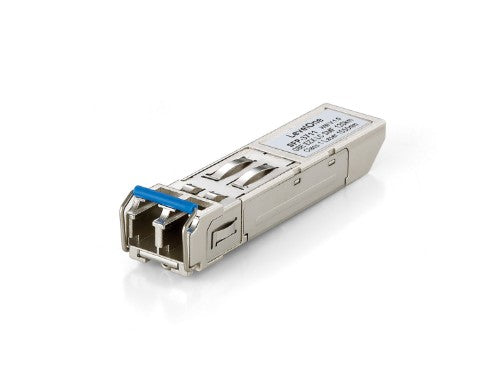

LevelOne SFP-3711 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bi-directional data transfer rate on a single duplex fiber core. For use with 9 micron fiber cables, it has increased transmission power to reach a distance of up to 120km. The SFP-3711 transceiver operates using a wavelength of 1550nm with a DFB Laser Diode light source and has a LC connector.- 1550nm DFB LD
- APD Receiver
- Data Rate: 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement (MSA)
- Small Form Factor Pluggable (SFP)
- Duplex LC Connector
- Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25Gbps
- Compliance with ANSI specifications for Fiber
- Channel applications at 1.06bps
- No configuration or installation software required
- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 120000 m |
| Wavelength | 1550 nm |
| Fiber ports quantity | 1 |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (max) | 5 dBmW |
| Duplex system | Full |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Certification | CE, FCC |
| Safety | EN 60825-1 |
| Power | |
| Maximum voltage | 6 V |
| Maximum current | 0.3 A |
| Input voltage | 3.3 V |
| Certificates | |
| Certification | CE, FCC |
| Safety | EN 60825-1 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 57 mm |
| Depth | 12 mm |
| Height | 13.7 mm |
| Weight | 20 g |
| Package depth | 20 mm |
| Package width | 106 mm |
| Package height | 65 mm |
| Package weight | 35 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 106 mm |
| Package height | 65 mm |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Maximum transfer distance | 120000 m |
| Wavelength | 1550 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (max) | 5 dBmW |
| Duplex system | Full |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Packaging data | |
| Package depth | 20 mm |
| Package width | 106 mm |
| Package height | 65 mm |
| Package weight | 35 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
