Description

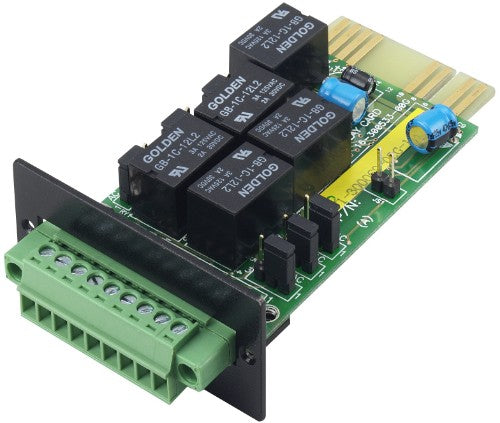

PowerWalker AS/400 Card, 9-Pin port
- Provides contact closure for monitoring UPS
- Offer different dry-contacts
- Suitable for IBM server, Personal PC and workstations equipment’s, auto-controlled industrial equipment and communication applications.
Description

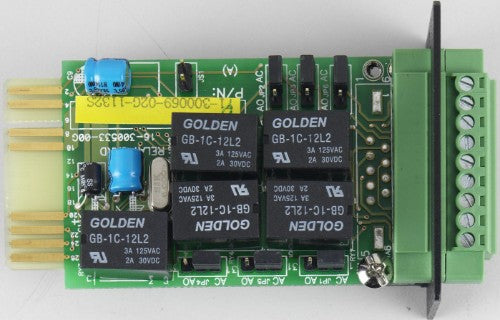

The PowerWalker AS/400 communication card provides contact closures for remote monitoring of your UPS. To meet different application requirement, the AS/400 card is capable of selection the status of the dry-contact signal (active close or active open) by setting jumper.- Provides contact closure for monitoring UPS
- Offer different dry-contacts
- Suitable for IBM server, Personal PC and workstations equipment’s, auto-controlled industrial equipment and communication applications.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Performance | |
| Product colour | Black |
| Harmonized System (HS) code | 84733020 |
| Colour | |
| Product colour | Black |
| Design | |
| Internal | Yes |
| Product colour | Black |
| Features | |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Compatibility | BlueWalker PowerWalker 1000C, 2000C, 3000C, 6000C, 10000C LCD, 1000, 1500, 2000, 3000 LCD, 1000RM, 1500RM, 2000RM, 3000RM LCD, 6000R, 10000R LCD, 10000CP, 15000CP, 20000CP, 30000CP 3/3 |
| Weight & dimensions | |
| Width | 52 mm |
| Depth | 85 mm |
| Height | 26 mm |
| Weight | 34.7 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Ports quantity | 1 |
| Connectivity technology | Wired |
| Compatibility | BlueWalker PowerWalker 1000C, 2000C, 3000C, 6000C, 10000C LCD, 1000, 1500, 2000, 3000 LCD, 1000RM, 1500RM, 2000RM, 3000RM LCD, 6000R, 10000R LCD, 10000CP, 15000CP, 20000CP, 30000CP 3/3 |
