Description

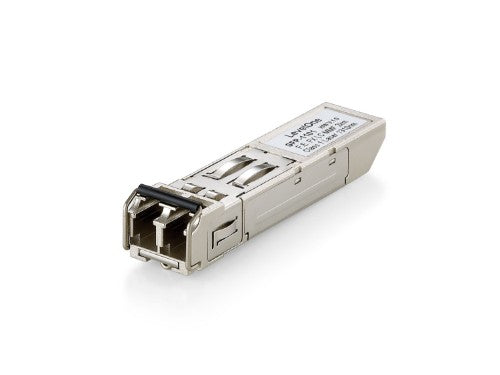

SFP-1101 155Mbps Multi-Mode SFP Transceiver, 2km, 850nm
- 1310nm LED
- Data Rate: 155Mbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement(MSA)
- Compliance with 100Base-FX of IEEE802.3u Standard
- Compliance with FDDI PMD Standard
- compliance with ATM Standard
Description

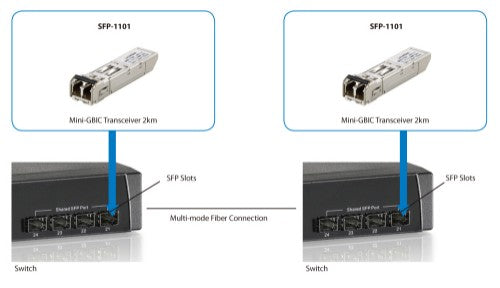

LevelOne SFP-1101 is a high performance and cost-effective multi-mode SFP transceiver. Intended for use with 100BASE-FX, it provides up to 155 Mbps bi-directional data transfer rate on a single duplex fiber core. For use with 50 and 62.5 micron fiber cables, it can reach a distance of up to 2km. The SFP-1101 transceiver operates using a wavelength of 1310nm with an LED light source and has a LC connector.- 1310nm LED
- Data Rate: 155Mbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement(MSA)
- Compliance with 100Base-FX of IEEE802.3u Standard
- Compliance with FDDI PMD Standard
- compliance with ATM Standard
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |

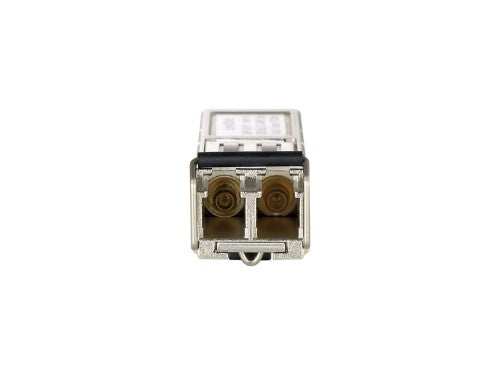

| Fiber optic connector | LC |
| Networking standards | IEEE 802.3u |
| Maximum transfer distance | 2000 m |
| Wavelength | 850 nm |
| Fiber ports quantity | 1 |
| Fiber cable diameters supported (core/cladding) | 62.5/125 µm |
| Tx power (min) | -19 dBmW |
| Tx power (max) | -10 dBmW |
| Duplex system | Full |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Hot-swap | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Hot-swap | Yes |
| Certification | CE, FCC |
| Safety | EN 60825-1 |
| Power | |
| Maximum voltage | 6 V |
| Maximum current | 0.3 A |
| Input voltage | 3.3 V |
| Certificates | |
| Certification | CE, FCC |
| Safety | EN 60825-1 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3u |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 57 mm |
| Depth | 12 mm |
| Height | 13.7 mm |
| Weight | 20 g |
| Package depth | 20 mm |
| Package width | 106 mm |
| Package height | 65 mm |
| Package weight | 35 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 106 mm |
| Package height | 65 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 2000 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 62.5/125 µm |
| Tx power (min) | -19 dBmW |
| Tx power (max) | -10 dBmW |
| Duplex system | Full |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Packaging data | |
| Package depth | 20 mm |
| Package width | 106 mm |
| Package height | 65 mm |
| Package weight | 35 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
