Description

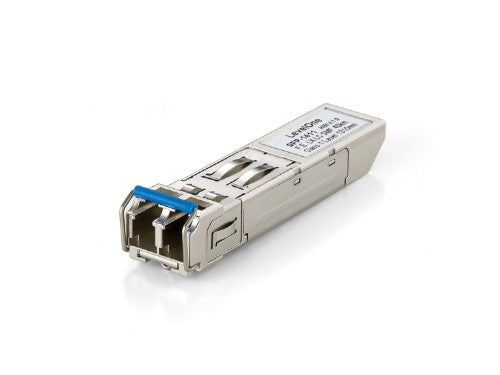

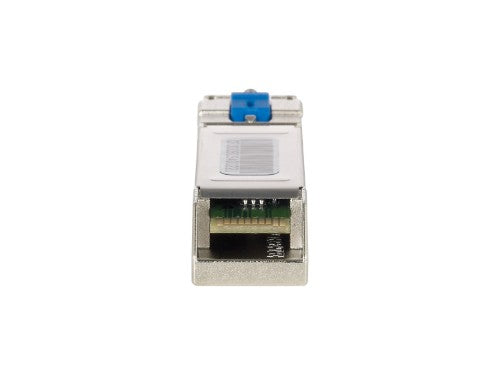

155 Mbps, SMF, SFP, 40 km, 1310nm

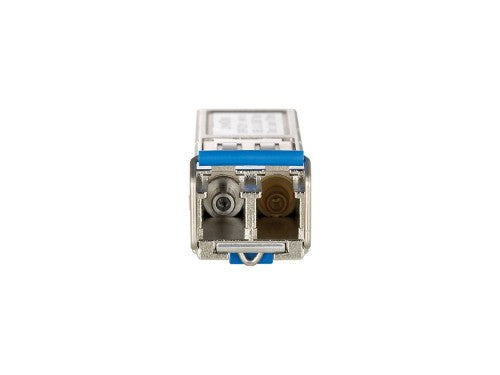

The SFP-1411 transceiver operates using a wavelength of 1310nm with a FP-Laser Diode light source and has a LC connector.
- 1310nm FP LD
- Data Rate: 155Mbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement (MSA) small Form Factor Pluggable (SFP)
- Duplex LC Connector
- Compliance with 100Base-FX of IEEE802.3u Standard
- Compliance with FDDI PMD Standard
- Compliance with ATM Standard
- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1
Description
LevelOne SFP-1411 is a high performance and costeffective single-mode SFP transceiver. Intended for use with 100BASE-FX, it provides up to 155 Mbps bi-directional data transfer rate on a single duplex fiber core. For use with 9-micron fiber cables, it has increased transmission power to reach a distance of up to 40km.The SFP-1411 transceiver operates using a wavelength of 1310nm with a FP-Laser Diode light source and has a LC connector.
- 1310nm FP LD
- Data Rate: 155Mbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement (MSA) small Form Factor Pluggable (SFP)
- Duplex LC Connector
- Compliance with 100Base-FX of IEEE802.3u Standard
- Compliance with FDDI PMD Standard
- Compliance with ATM Standard
- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Link budget | 17 dB |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3u |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber ports quantity | 1 |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -15 dBmW |
| Tx power (max) | -8 dBmW |
| Duplex system | Full |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Country of origin | China |
| Hot-swap | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Hot-swap | Yes |
| Country of origin | China |
| Certification | CE, FCC |
| Safety | EN 60825-1 |
| Power | |
| Maximum voltage | 6 V |
| Maximum current | 0.3 A |
| Input voltage | 3.3 V |
| Certificates | |
| Certification | CE, FCC |
| Safety | EN 60825-1 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3u |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 13.7 mm |
| Depth | 56.5 mm |
| Height | 8.95 mm |
| Weight | 20 g |
| Package depth | 130 mm |
| Package width | 75 mm |
| Package height | 50 mm |
| Package weight | 60 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 75 mm |
| Package height | 50 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -15 dBmW |
| Tx power (max) | -8 dBmW |
| Duplex system | Full |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Packaging data | |
| Package depth | 130 mm |
| Package width | 75 mm |
| Package height | 50 mm |
| Package weight | 60 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 85369010 |
