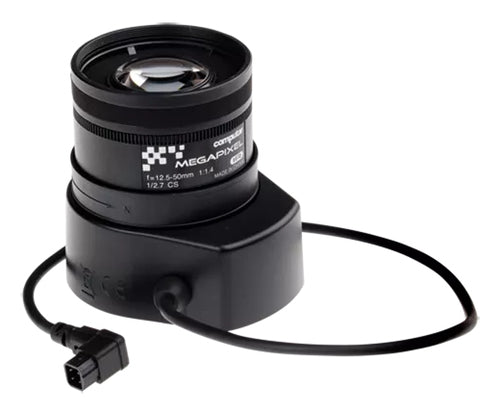

12.5 - 50mm, DC-Iris, CS mount, IR
Key Features
- Day and night lenses; Excellent video quality; Lenses for extreme light sensitivity; Targeted at specific needs; Tested and approved by Axis
Description
Axis fixed network cameras are equipped with carefully selected lenses to provide the best possible performance and durability. A wide variety of different CS mount lenses helps meet different surveillance requirements or specifications such as resolution, focal length or aperture. The match between a lens, the camera sensor and the mechanical design is crucial for the performance of a camera. Axis offers tested and approved optional CS mount lenses allowing for greater surveillance flexibility while maintaining excellent image quality. The CS mount portfolio includes i-CS, P-Iris and DC-iris lenses, ranging from wide-angle lenses, with barrel distortion reduction, to telephoto lenses.
Specifications
| Lens system |
|---|
| Lens type |
Telephoto lens |
| Component for |
IP Camera |
| Focal length range |
12.5 - 50 mm |
| Optical sensor size |
25.4 / 3 mm (1 / 3") |
| Lens mount interface |
CS mount |
| Performance |
|---|
| Compatibility |
AXIS P1353/-E, AXIS P1354/-E, AXIS Q1602/-E,
AXIS Q1604/-E |
| Design |
|---|
| Product colour |
Black |
| Technical details |
|---|
| Harmonized System (HS) code |
90021100 |
| Colour |
|---|
| Product colour |
Black |
| Logistics data |
|---|
| Harmonized System (HS) code |
90021100 |
| Weight & dimensions |
|---|
| Diameter |
4.6 cm |
| Length |
58 mm |
