Description

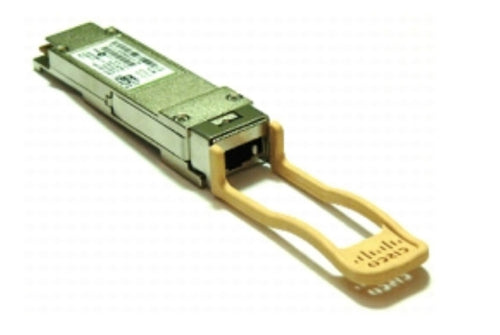

40G QSFP Bi-Directional transceiver module, Duplex Multi-mode Fiber, LC Duplex connector, 100m reach with OM3 fiber
Features and Benefits of Cisco QSFP Modules
- Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet Cisco QSFP port
- Flexibility of interface choice (for different reach requirements and fiber types)
- Interoperable with other IEEE-compliant 40GBASE interfaces where applicable
- Certified and tested on Cisco QSFP 40G ports for superior performance, quality, and reliability
- High-speed electrical interface compliant to IEEE 802.3ba
- QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement (MSA)
Description
The Cisco® 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.Features and Benefits of Cisco QSFP Modules
- Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet Cisco QSFP port
- Flexibility of interface choice (for different reach requirements and fiber types)
- Interoperable with other IEEE-compliant 40GBASE interfaces where applicable
- Certified and tested on Cisco QSFP 40G ports for superior performance, quality, and reliability
- High-speed electrical interface compliant to IEEE 802.3ba
- QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement (MSA)
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ba |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | BX, SR |
| Hot-Plug support | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Hot-Plug support | Yes |
| Certification | MSA |
| Power | |
| Power consumption (typical) | 3.5 W |
| Certificates | |
| Certification | MSA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ba |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Hot-Plug support | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
