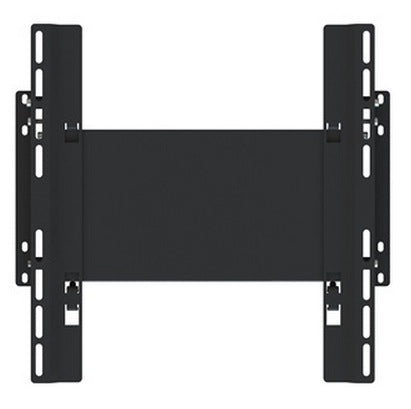

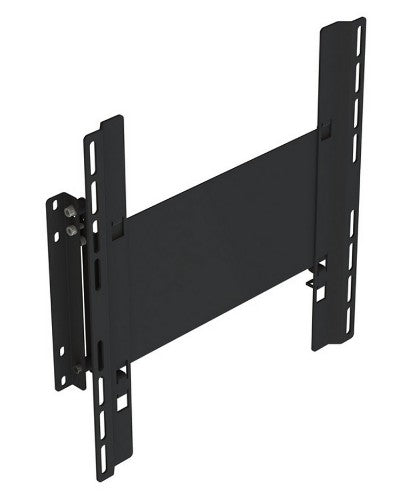

Func Flatscreen WM T Black
Description
Gives a tilt function to more screens.
A clever solution when you need a tiltable wall bracket – when mounting a screen high on a wall, for example. The extended range of VESA standards, from 100 x 100 to 400 x 400 mm, makes this bracket compatible with most popular screen sizes. The product can be set in either of two fixed positions, enabling it to be mounted either flush with the wall or tilted forwards by 8 degrees. Black. Maximum load 30 kg.
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
81.3 cm (32") |
| Panel mounting interface |
100 x 100,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400 |
| Minimum VESA mount |
100 x 100 mm |
| Maximum VESA mount |
400 x 400 mm |
| Maximum screen size |
116.8 cm (46") |
| Maximum weight capacity |
30 kg |
| Ergonomics |
|---|
| Tilt angle range |
0 - 8° |
| Technical details |
|---|
| Product colour |
Black |
| Mounting type |
Wall |
| Design |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Weight |
3.3 kg |
| Other features |
|---|
| Mounting type |
Wall |
