Description

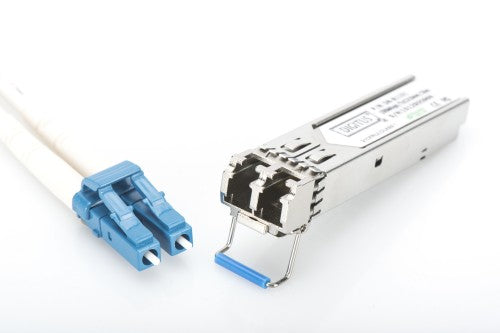

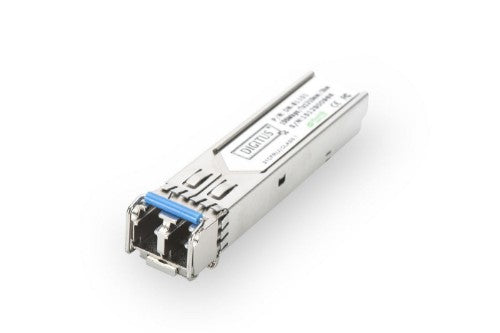

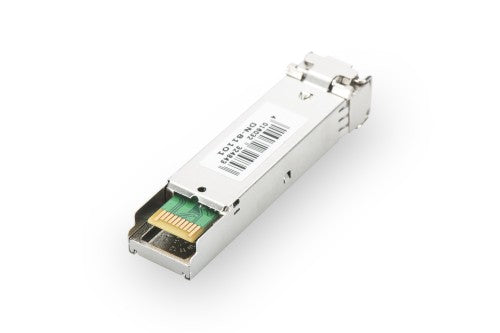

155Mbps SFP Module, Multimode LC Duplex Connector, 1310nm, up to 2km
- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 2km at a maximum data rate of 155Mbps
- Operating temperature: 0 °C ~ 70 °C
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
Key Features
- Mini GBIC SFP (Small Form Factor Pluggable) module
- Compatible with the following manuafacturers: Ubiquiti, Allied Telesis, Allnet, CISCO, D-Link, Edimax, Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, ZyXEL, ZTE , Avaya , Mikrotik , ENTERASYS, FINISAR, FORCE 10 ,RIVERSTONE , Fortinet
- High quality and excellent reliability
- 155 Mbps maximum data rate
- Class 1 laser product compliant with EN 60825-1
- Easy plug-and-play installation
- MSA (Multi Source Agreement) compliant
- Hot pluggable
- Connector: 1x LC Duplex
- Wavelength: 1310nm
- Transmission power: minimum -8 dBm, maximum -3 dBm
- Sensitivity receiving power: minimum -24 dBm
- For a distance of up to 2km
- Suitable for 50/125µm and 62.5/125µm multimode fiber cables
- Safe fast-locking mechanism
- 3.3V power supply
- Operating temperature: 0 °C ~ 70 °C
Description
The plug and play fiber connection- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 2km at a maximum data rate of 155Mbps
- Operating temperature: 0 °C ~ 70 °C
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | No |
| Fiber optic connector | LC |
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber ports quantity | 1 |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Rx power (min) | -24 dBmW |
| Duplex system | Full |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | mini-GBIC/SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Ethernet interface type | Fast Ethernet |
| Country of origin | China |
| Easy to install | Yes |
| Product colour | Metallic |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Brand compatibility | MSA Compliant |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Easy to install | Yes |
| Product colour | Metallic |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Brand compatibility | MSA Compliant |
| Country of origin | China |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | mini-GBIC/SFP |
| Ethernet interface type | Fast Ethernet |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 115 mm |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Maximum transfer distance | 2000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Rx power (min) | -24 dBmW |
| Duplex system | Full |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Packaging data | |
| Package volume | 310.5 cm³ |
| Package depth | 30 mm |
| Package width | 115 mm |
| Package weight | 75 g |
| Weight & dimensions | |
| Package volume | 310.5 cm³ |
| Package depth | 30 mm |
| Package width | 115 mm |
| Package weight | 75 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 85369010 |
| UK Trade Tariff code | 85176200 |
