2D, CMOS 752 x 480 pixels, USB, LEDs
Description

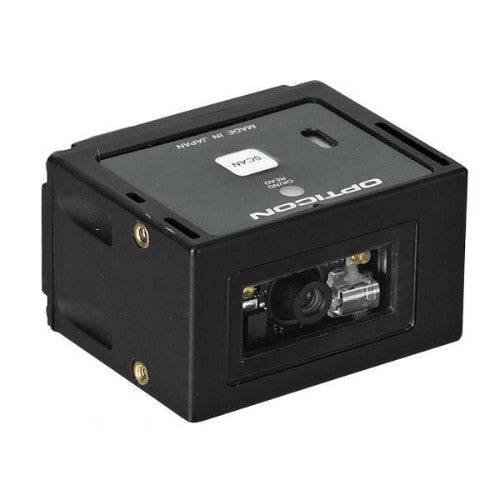

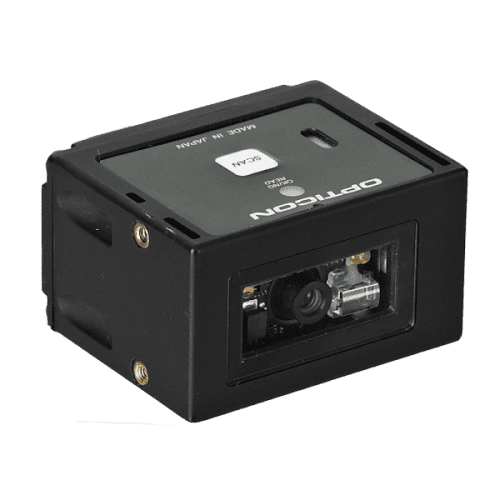

The NLV3101 is the latest in our range of 2D CMOS fixed position scanners. The NLV3101 has been developed to be used in the most demanding applications requiring a device capable of reading both 1D and 2D barcodes including Retail POS, Self service Kiosks and Medical/Pharmaceutical Analysis machines.
Specifications
| Scanning |
|---|
| Type |
Fixed bar code reader |
| Tilt reading angle |
0 - 360° |
| Sensor type |
CMOS |
| Scanner type |
2D |
| Pitch reading angle |
-50 - 50° |
| Optical sensor resolution (W x H) |
752 x 480 pixels |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Standard interfaces |
USB |
| Performance |
|---|
| LED indicators |
Yes |
| Keys quantity |
2 keys |
| Housing material |
Acrylonitrile butadiene styrene (ABS) |
| Built-in display |
No |
| International Protection (IP) code |
IP65 |
| Product colour |
Black |
| Certification |
CE, FCC Class B, VCCI Class B, IEC 62471, EN55022, EN55024, FDA CDRH Class II |
| Buzzer |
Yes |
| Design |
|---|
| Type |
Fixed bar code reader |
| LED indicators |
Yes |
| Keys quantity |
2 keys |
| Housing material |
Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code |
IP65 |
| Product colour |
Black |
| Certification |
CE, FCC Class B, VCCI Class B, IEC 62471, EN55022, EN55024, FDA CDRH Class II |
| Power |
|---|
| Power consumption |
200 mA |
| Power source type |
DC |
| Input voltage |
6 V |
| Weight & dimensions |
|---|
| Width |
41.1 mm |
| Depth |
33 mm |
| Height |
24 mm |
| Weight |
30 g |
| Technical details |
|---|
| Type |
Fixed bar code reader |
| LED indicators |
Yes |
| Keys quantity |
2 keys |
| Housing material |
Acrylonitrile butadiene styrene (ABS) |
| Built-in display |
No |
| International Protection (IP) code |
IP65 |
| Product colour |
Black |
| Certification |
CE, FCC Class B, VCCI Class B, IEC 62471, EN55022, EN55024, FDA CDRH Class II |
| Buzzer |
Yes |
| Harmonized System (HS) code |
84716070 |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
20 - 85% |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
