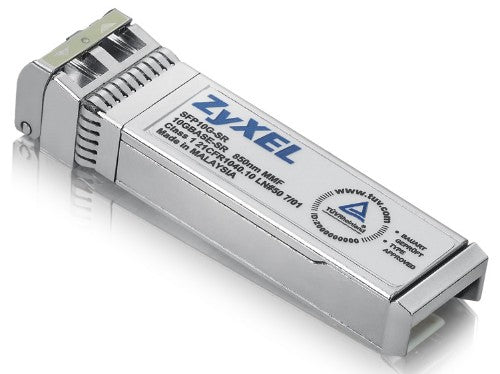

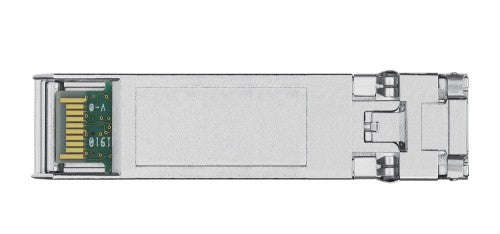

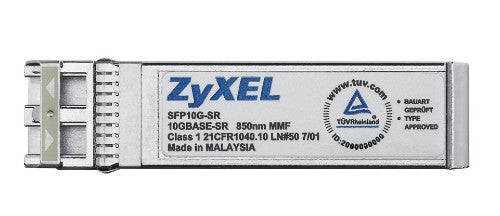

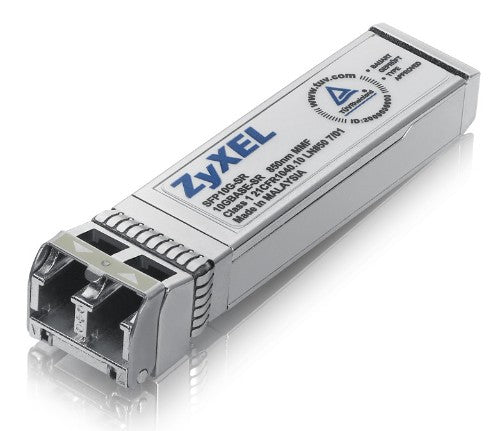

Zyxel SFP10G-SR network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm

SFP10G-SR, SFP Plus Transceiver

Description

- Hot-Pluggable with Maximum Flexibility
- Low Power Dissipation
- Industry Standard Compliance
- SFP MSA (Multi-Source Agreement) Compliance
- Compact Size, High Port Density

Specifications

Performance
SFP transceiver type	Fiber optic
Fiber optic connector	SFP+
Maximum transfer distance	300 m
Wavelength	850 nm
Fiber ports quantity	2
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Multi-mode fiber (MMF) supported	Yes
Hot-Plug support	Yes
Harmonized System (HS) code	85369010
Features
Hot-Plug support	Yes
Network
SFP transceiver type	Fiber optic
Fiber optic connector	SFP+
Fiber ports quantity	2
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Weight & dimensions
Width	14.8 mm
Depth	56.5 mm
Height	11.8 mm
Weight	20 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Hot-Plug support	Yes
Maximum transfer distance	300 m
Wavelength	850 nm
Ports & interfaces
Fiber ports quantity	2
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85369010
