Description

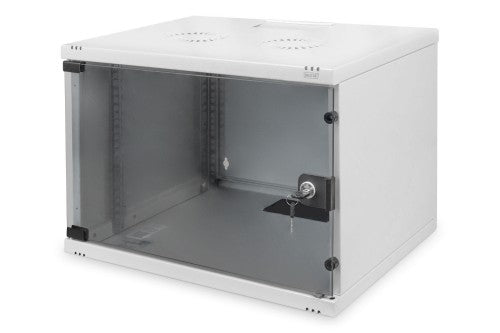

7U wall mounting cabinet, SOHO, unmounted 370x540x400 mm, full glass front door, grey
- Unmounted flat package delivery for cost- and space effciency
- Optimized air ventilation and exhaustion
- Lockable glass door ensures safety
The 483 mm (19”) network cabinets for wall installation from the SOHO series are delivered unassembled using a flat pack to optimize costs. Available in four rack units and equipped with a full glass door as well as a cable entry with brushes in the roof and floor, this is the perfect product for subdividing or building up a small to medium-sized network. Two pairs of galvanized 483 mm (19”) profile rails labeled with easy-to-read rack units are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). The door hinges can be switched. Installation takes just a few steps and is extremely easy thanks to the step-by-step instructions included.
Key Features
- Safety class rating IP20
- Lockable safety-glass door

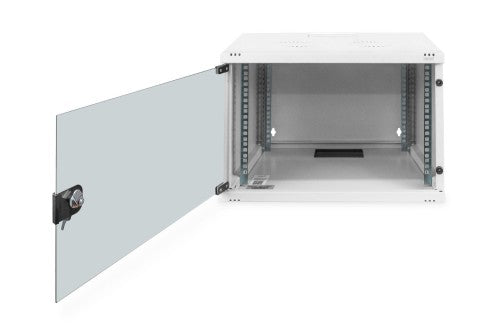

- 200° door opening angle
- 1-point-locking-mechanism on the front door

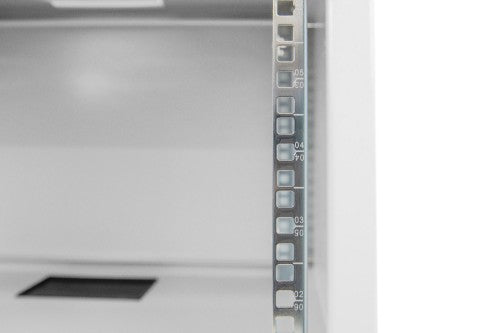

- 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
- 483 mm (19”) profile rails are adjustable in depth
- 1.1 - 1.5 strong sheet steel with a high loading capacity, powder coated
- Cable entry with brush strip on the top and with plastic cover on the base
- Roof is prepared for fan units (punched out entries)
- Ventilation slots for active and passive ventilation and exhausting
- Equipment mounting depth min.-max.: 170-270 mm
Description
The DIGITUS® Wall Mounting Cabinets are made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany- Unmounted flat package delivery for cost- and space effciency
- Optimized air ventilation and exhaustion
- Lockable glass door ensures safety
The 483 mm (19”) network cabinets for wall installation from the SOHO series are delivered unassembled using a flat pack to optimize costs. Available in four rack units and equipped with a full glass door as well as a cable entry with brushes in the roof and floor, this is the perfect product for subdividing or building up a small to medium-sized network. Two pairs of galvanized 483 mm (19”) profile rails labeled with easy-to-read rack units are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). The door hinges can be switched. Installation takes just a few steps and is extremely easy thanks to the step-by-step instructions included.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 7U |
| International Protection (IP) code | IP20 |
| Front door construction | Glass |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Maximum weight capacity | 60 kg |
| Material | Steel |
| Product colour | Grey |
| Certification | IP40 |
| Weight & dimensions | |
| Package volume | 50445 cm³ |
| Package depth | 450 mm |
| Package width | 590 mm |
| Package weight | 13.2 kg |
| Width | 540 mm |
| Depth | 400 mm |
| Height | 370 mm |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 60 kg |
| Packaging data | |
| Package volume | 50445 cm³ |
| Package depth | 450 mm |
| Package width | 590 mm |
| Package weight | 13.2 kg |
| Technical details | |
| Package width | 590 mm |
| Type | Wall mounted rack |
| Size (imperial) | 48.3 cm (19") |
| Side panels included | Yes |
| Harmonized System (HS) code | 85381000 |
| Rack capacity | 7U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | Grey |
| Certificates | |
| Certification | IP40 |
| Packaging content | |
| Side panels included | Yes |
| Material | |
| Material | Steel |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85381000 |
| UK Trade Tariff code | 94032080 |
