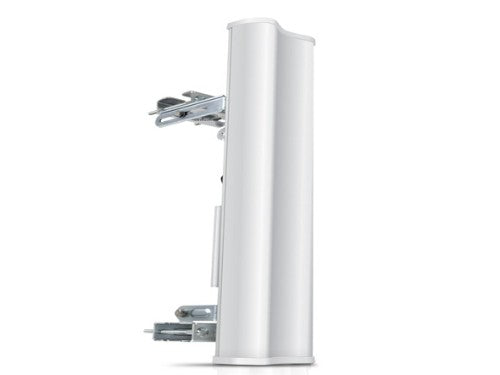

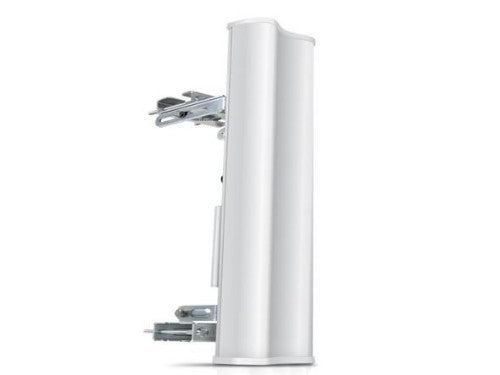

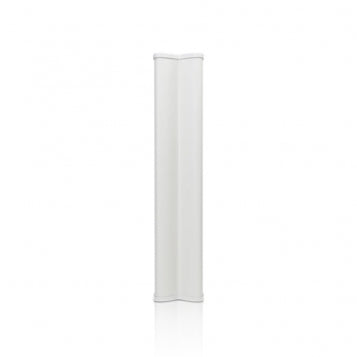

Air Max Sector, 15dBi, 2.4GHz
Description
Disruptive 2X2 MIMO price/performance Basestation antennas. Designed to seamlessly integrated with Ubiquiti airMAX Rocket hardware for powerful basestation applications. Featuring great cross-pol isolation, gain, beamwidth patterns, and adjacent frequency noise attenuation performance.
Specifications
| Performance |
|---|
| Antenna gain level (max) |
15 dBi |
| Frequency band |
2.4 GHz |
| Vertical beam width |
118° |
| Horizontal beam width |
123° |
| Features |
|---|
| Antenna gain level (max) |
15 dBi |
| Frequency band |
2.4 GHz |
| Antenna type |
Sector antenna |
| Voltage Standing Wave Ratio (VSWR) |
1.5:1 |
| Vertical beam width |
118° |
| Polarization |
Dual polarization |
| Horizontal beam width |
123° |
| Product colour |
White |
| Technical details |
|---|
| Antenna gain level (max) |
15 dBi |
| Frequency band |
2.4 GHz |
| Antenna type |
Sector antenna |
| Voltage Standing Wave Ratio (VSWR) |
1.5:1 |
| Vertical beam width |
118° |
| Polarization |
Dual polarization |
| Horizontal beam width |
123° |
| Harmonized System (HS) code |
85177100 |
| Colour |
|---|
| Product colour |
White |
| Weight & dimensions |
|---|
| Weight |
4 kg |
| Width |
93 mm |
| Depth |
145 mm |
| Height |
700 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85177100 |
