Description

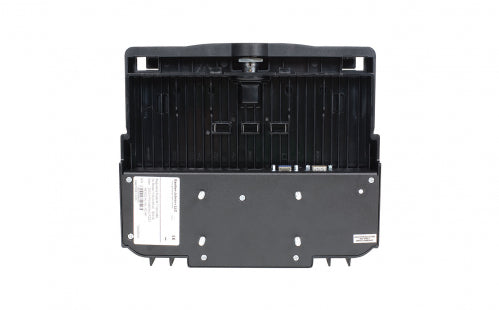

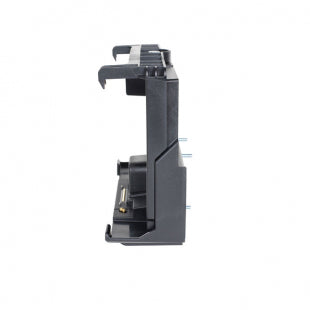

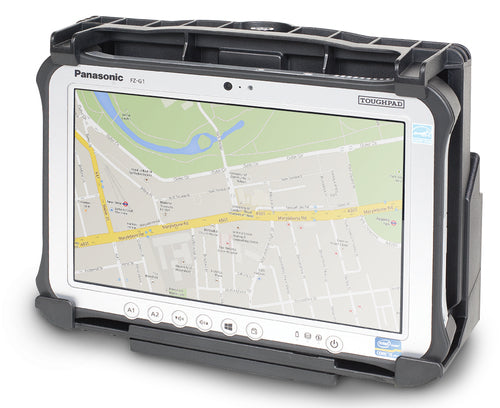

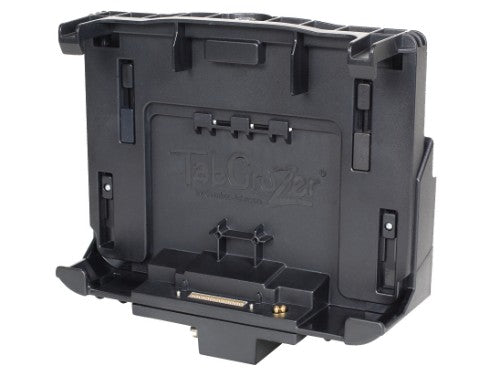

Standard Vehicle Dock for Toughpad FZ-G1, Without Antenna Pass Through, Keyed Alike
- Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify the product as Toughbook Certified
- Designed using MIL-STD-810G test procedures
- Designed for the Toughpad FZ-G1
- Docking Station design accommodates extended battery, smart card reader, rear hand strap and bumper guards
- Docking station mounting pattern is VESA 75mm
- Docking station can be mounted either vertically or horizontally
- Alignment tabs prevent damage to the docking connector when docking the computer
- Steel and Composite design for reduced overall weight
- Rugged construction for long-term durability
Key Features
- Ports: 1 x 16V DC-in; 1 x LAN; 2 x USB 3.0; 1 x Serial; 1 x HDMI; 1 x VGA
- Optional dual antenna pass-through
- VESA 75 mounting pattern
- Keyed lock
Description
Made for each other: Gamber-Johnson's docking station perfectly compliments the Toughpad FZ-G1 offering a complete vehicle docking experience. Gamber Johnson is an industry leader in design innovation and in manufacturing high quality Toughpad vehicle solutions. Their development process includes extensive testing that result in the most rock solid docking solutions on the market today. These docks are designed, developed and manufactured to create an improved vehicle experience.- Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify the product as Toughbook Certified
- Designed using MIL-STD-810G test procedures
- Designed for the Toughpad FZ-G1
- Docking Station design accommodates extended battery, smart card reader, rear hand strap and bumper guards
- Docking station mounting pattern is VESA 75mm
- Docking station can be mounted either vertically or horizontally
- Alignment tabs prevent damage to the docking connector when docking the computer
- Steel and Composite design for reduced overall weight
- Rugged construction for long-term durability
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 0 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DC-in jack | Yes |
| Connectivity technology | Docking |
| Dual antenna pass-through | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Product colour | Black |
| Card reader integrated | No |
| Brand compatibility | Panasonic |
| Compatibility | TOUGHBOOK G1 |
| Cable lock slot | Yes |
| VESA mounting | Yes |
| Maximum VESA mount | 75 x 75 mm |
| Technical details | |
| Product colour | Black |
| Brand compatibility | Panasonic |
| Compatibility | TOUGHBOOK G1 |
| Cable lock slot | Yes |
| Harmonized System (HS) code | 84733020 |
| Storage | |
| Card reader integrated | No |
| Weight & dimensions | |
| Weight | 910 g |
| Width | 285 mm |
| Depth | 97 mm |
| Height | 251 mm |
| Design | |
| Product colour | Black |
| Cable lock slot | Yes |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
