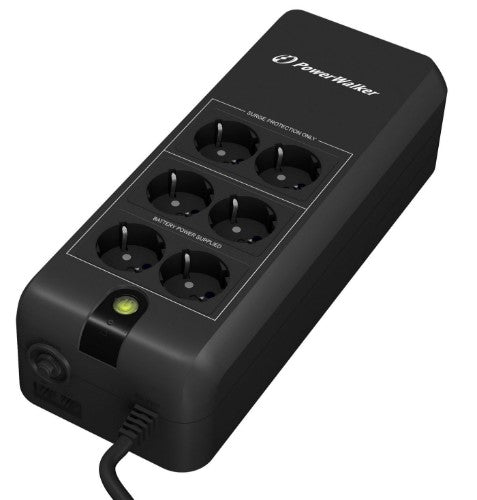

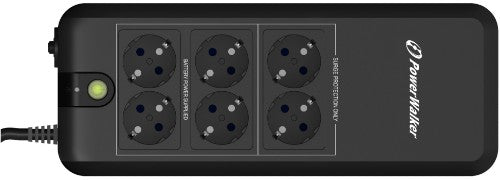

PowerWalker VFD 600 APFC uninterruptible power supply (UPS) Standby (Offline) 0.6 kVA 300 W 6 AC outlet(s)

Offline, 600VA, 300W, Schuko Input, 6 x Schuko Outlet, 1 x 12V/5Ah

Description

PowerWalker VFD APFC series is a standby/offline UPS for home and office applications and it is equipped with a technique that allows using the full power of UPS, even when used with APFC power supply load. Usually it is required to oversize a UPS to ensure secure backup when connecting a power supply with active power factor correction. With the implemented technology this is no longer needed. Therefore you can choose smaller cost-effective UPS (e.g. PowerWalker VFD APFC instead of usual offline or line interactive 1000 VA model). Besides the lower purchase price, it also saves energy cost due to lower own power consumption.

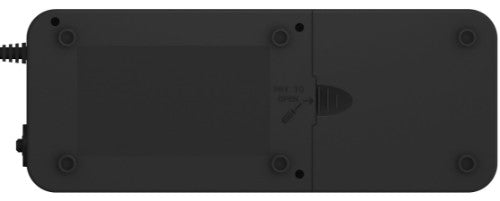

Equipped with 6 Schuko-Type outlets (all with surge protection, 4 with battery backup) these models can be used like a power strip. A special battery compartment enables an easy exchange of the rechargeable battery by the user.

Specifications

Power
Output voltage regulation	10%
Output frequency regulation	1 Hz
Output power factor	0.5
Output power	300 W
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Efficiency	95%
Output power capacity	0.6 kVA
Performance
UPS topology	Standby (Offline)
LED indicators	Yes
Surge protection	Yes
Surge protection features	Fax, Modem, Network, Telephone
Features
UPS topology	Standby (Offline)
Output voltage regulation	10%
Output frequency regulation	1 Hz
Output power factor	0.5
Output power	300 W
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Efficiency	95%
Surge protection	Yes
Surge protection features	Fax, Modem, Network, Telephone
Output power capacity	0.6 kVA
Input frequency	50/60 Hz
Ports & interfaces
Number of type F outputs	6
AC outlets quantity	6 AC outlet(s)
AC outlet types	Type F
Serial ports quantity	0
Modem (RJ-11) ports	2
Ethernet LAN (RJ-45) ports	2
Battery
Number of batteries supported	1
Battery voltage	12 V
Battery capacity	5 Ah
Battery recharge time	10 h
Typical backup time at half load	8 min
Typical backup time at full load	2 min
Design
Form factor	Compact
LED indicators	Yes
Product colour	Black
Cooling type	Passive
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 85%
Technical details
Harmonized System (HS) code	85078000
Packaging content
Manual	Yes
Cooling
Cooling type	Passive
Weight & dimensions
Weight	2.8 kg
Width	125 mm
Height	86 mm
Depth	320 mm
Packaging data
Manual	Yes
Logistics data
Products per pallet	120 pc(s)
Harmonized System (HS) code	85078000
Other features
Nominal output voltage	230 V
