Description
19" TFT LCD, 1440 x 900px, 16:10/16:9, 250cd/m, 20 kg
Key Features
- Modular design for optional KVM switches, enabling management of up to 128 computers
- Supports video resolutions up to 1440 x 900
- Dual Interface for PS/2 and USB keyboard/mouse
- Easy switching between computers with keyboard hotkeys/On Screen Display (OSD) menus
- Auto scan mode for non-stop monitoring of selected computer
- Password protection prevents unauthorized access
- Multi-platform support: Windows, Mac OS X, Sun, Linux
Description

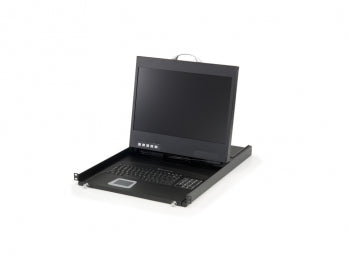

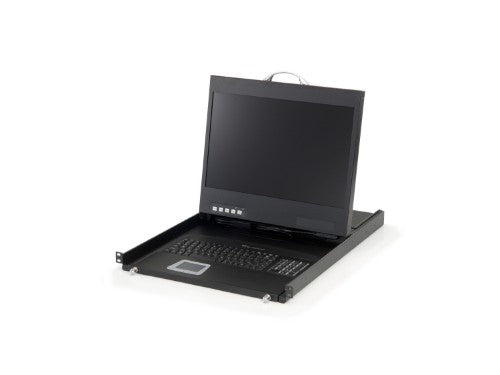

The LevelOne KVM-8901 is a compact and modular KVM console drawer designed to be used in a standard 19-inch server rack. It offers connectivity to 8 or 16 computers by depending on the LevelOne KVM module that is installed (KCM-0832 or 1632). It features a 19-inch retractable LCD(19:10) high video quality up to 1440 x 900 monitor and keyboard with built-in touchpad. Users can daisy chain up to eight units of KCM-0832/1632 together, providing control of up to 128 computers in total, support Auto Scan Mode for monitoring PCs and flexible and easy PC selection via KVM-OSD manual or hot Keys.Key Features
- Modular design for optional KVM switches, enabling management of up to 128 computers
- Supports video resolutions up to 1440 x 900
- Dual Interface for PS/2 and USB keyboard/mouse
- Easy switching between computers with keyboard hotkeys/On Screen Display (OSD) menus
- Auto scan mode for non-stop monitoring of selected computer
- Password protection prevents unauthorized access
- Multi-platform support: Windows, Mac OS X, Sun, Linux
Specifications
| Display | |
|---|---|
| Display number of colours | 16.78 million colours |
| Display type | LCD |
| Display | TFT |
| Display diagonal | 48.3 cm (19") |
| Viewing angle, vertical | 85° |
| Viewing angle, horizontal | 85° |
| On Screen Display (OSD) | Yes |
| Display resolution | 1440 x 900 pixels |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 500:1 |
| Aspect ratio | 16:10 |
| Technical details | |
| Daisy chain | Yes |
| Country of origin | Taiwan |
| Relative humidity | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Console port | VGA |
| Cables included | AC, KVM |
| Compliance certificates | RoHS |
| Keyboard | |
| Keyboard layout | QWERTY |
| Keyboard language | US English |
| Built-in touchpad | Yes |
| Keyboard number of keys | 105 |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Solaris 8, Solaris 9 |
| Power | |
| Power consumption (typical) | 19.2 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Certificates | |
| Certification | CE, FCC, REACH |
| Weight & dimensions | |
| Weight | 20 kg |
| Width | 482 mm |
| Height | 44 mm |
| Depth | 610 mm |
| Packaging data | |
| Package width | 742 mm |
| Package depth | 576 mm |
| Package height | 167 mm |
| Package weight | 1.3 kg |
| Package dimensions (WxDxH) | 600 x 210 x 780 mm |
| Packaging content | |
| Screws included | Yes |
| Quick installation guide | Yes |
| Manual | Yes |
| Package type | Box |
| Cables included | AC, KVM |
