Description
155Mbps, SMF, SFP, LC, 100BASE-FX, 3.47V/300mA, 2 km max
This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.
Key Features
- Supports Digital Diagnostics Monitoring Interface (DDMI) for easy status monitoring

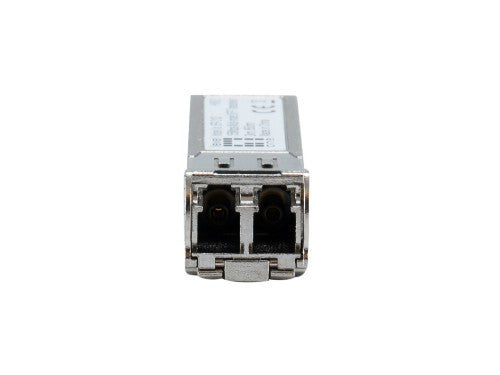

- Provides duplex LC connector
- Hot-swappable providing non-stop service
- 40°C to 85°C operating temperature range
- Compatible with SFP Multi-Sourcing Agreement (MSA) standards
Description

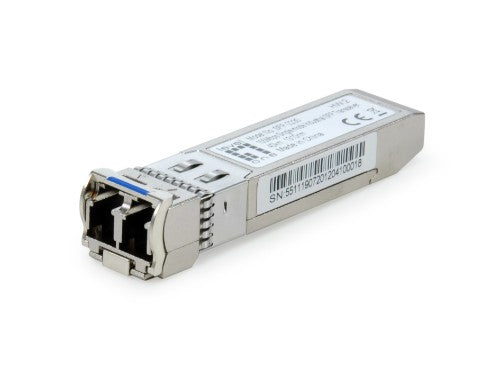

The levelOne SFP-2230 is a high performance and cost-effective single-mode Industrial SFP transceiver. Intended for use with 100BASE-FX, it provides up to 155 Mbps bi-directional data transfer rate on a single duplex fiber core. For use with 9 and 125 micron fiber cables, it can reach a distance of up to 30km. The SFP-2230 transceiver operates using a wavelength of 1310nm with a FP Laser Diode light source and has an LC port.This Hot-swappable SFP transceiver offers the latest Industrial standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Tx wavelength (min) | 1263 nm |
| Tx wavelength (max) | 1360 nm |
| Rx wavelength (min) | 1270 nm |
| Rx wavelength (max) | 1600 nm |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 2000 m |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -5 dBmW |
| Rx power (min) | -34 dBmW |
| Rx power (max) | -10 dBmW |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| SFP transceiver standard | FX |
| Copper ethernet cabling technology | 100BASE |
| Country of origin | China |
| Product colour | Silver |
| Hot-swap | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Country of origin | China |
| Certification | CE |
| Safety | FCC Part 15 Class B EN55022 Class B(CISPR 22B)VCCI Class B |
| Power | |
| Maximum voltage | 3.47 V |
| Maximum current | 0.3 A |
| Power consumption (typical) | 1 W |
| Certificates | |
| Certification | CE |
| Safety | FCC Part 15 Class B EN55022 Class B(CISPR 22B)VCCI Class B |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 12 mm |
| Height | 57 mm |
| Weight | 21 g |
| Package depth | 106 mm |
| Package width | 65 mm |
| Package height | 20 mm |
| Package weight | 39.5 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| User guide | Yes |
| Technical details | |
| Package width | 65 mm |
| Package height | 20 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 2000 m |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Tx power (min) | -5 dBmW |
| Rx power (min) | -34 dBmW |
| Rx power (max) | -10 dBmW |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet height (air) | 166.9 cm |
| Compliance certificates | RoHS |
| Packaging data | |
| Package type | Box |
| Package depth | 106 mm |
| Package width | 65 mm |
| Package height | 20 mm |
| Package weight | 39.5 g |
| User guide | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 268 mm |
| Master (outer) case gross weight | 6.67 kg |
| Products per master (outer) case | 150 pc(s) |
| Products per pallet | 35 pc(s) |
| Harmonized System (HS) code | 85369010 |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet height (air) | 166.9 cm |
